The Savage XL – Extra Large Size and Mega Power!
Check out the new machoaddition to the Savage line-up! The Savage XL is the super-large, extra-tough and supremely powerful bigger brother to the Savage monster trucks. With a longer wheelbase, wider stance and huge 5.9cc (.36 cubic inch) engine, the Savage XL is ready to rock and roll right out of the box! We were looking to expand the Savage range of monster trucks and had to consider what would capture the imagination and hearts of legions of HPI Savage fans. HPI designers settled on a larger, fun-oriented version of the Savage with massive great tyres, a giant chunky bodyshell and powered by the biggest engine ever offered in a production Savage monster truck. The end result is the Savage XL!
It's all about CHOICE!
Extreme
Size...Extreme Power...Extreme Menace!
Extreme
Action...Extreme Speed...Extreme Performance!
2.4GHz Radio
System with Failsafe
The Savage X 4.6, Savage XL and Savage Flux HP now include an
exclusive brand new HPI 2.4GHz radio system! This means you get to
experience DSSS (Direct-Sequence Spread Spectrum) technology for
no-crystal, no-fuss driving enjoyment. You can just switch on the
radio and not have to worry about what channel anyone else is
running - just get out and drive! With HPI failsafe tech, you get
additional peace of mind, because you won't have to worry about
loss of radio contact - the RF-20 receiver has it built right
in!
Awesome XL
Looks!

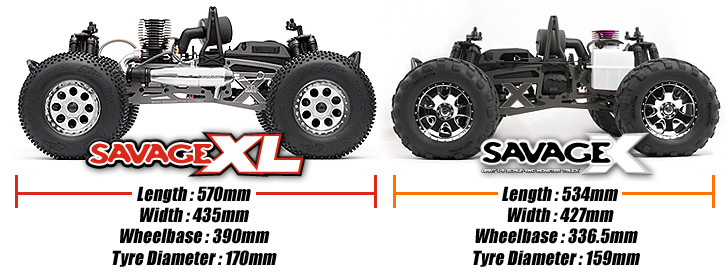

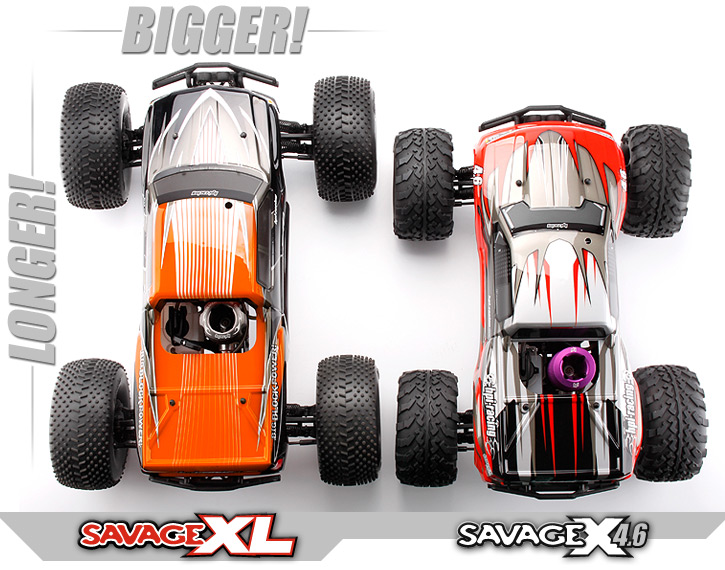

Size does matter...

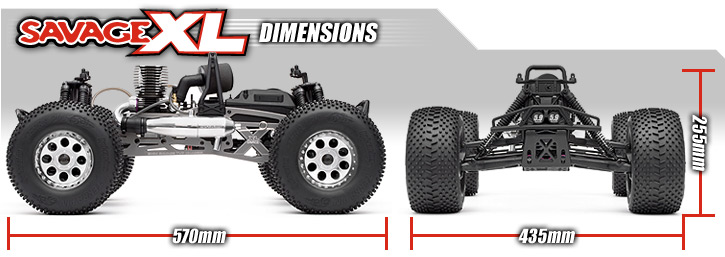

Bigger in every dimension than the Savage X trucks that stand next to it, the XL is taller, longer and wider, with a longer wheelbase, more ground clearance and tyres nearly 7 inches across! It’s based on the practically indestructible Savage X chassis but features even more durability upgrades like 3mm TVP plates and engine mount, machine-cut differential ring and pinion bevel gears, steel spur gear, heavy duty clutchbell, extra heavy-duty dogbones, new larger diff outdrives and axles, machined brake hub, dual fibre disk brakes and much more! Read on to find out more about the Savage XL! It will absolutely blow you away!

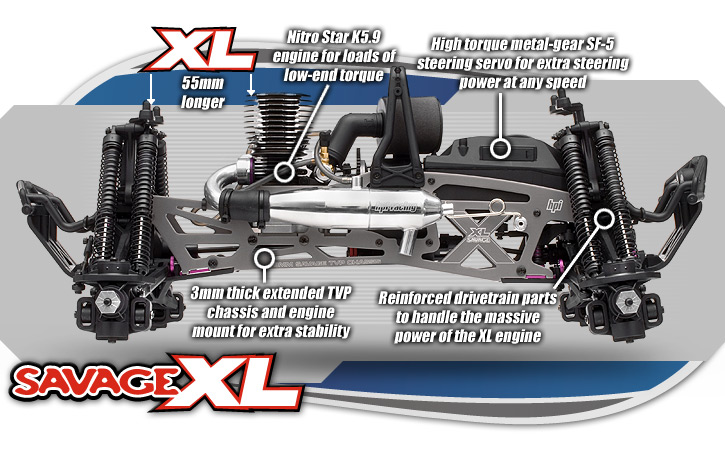

Extra-Long Alloy
Chassis
To get the long wheelbase of the Savage XL, HPI designers settled
on using an all-new extended TVP (Twin Vertical Plate) chassis that
is made from 3mm thick 6061 aluminium. 6061-series aluminium is
light and strong and provides the strength for stretching the
Savage platform to its limits! The chassis features the cool Savage
‘X’ styling, plus a few extra design features etched
into the chassis to really make it stand out! The engine is fitted
to a one-piece engine mount which is then firmly attached to a 3mm
extra thick engine mounting plate that is mounted between the TVP
chassis. These are the thickest standard TVP and engine plate parts
ever used on a Savage monster truck, and can easily withstand the
torque of the massive Nitro Star K5.9 engine, plus anything else
you can throw at the truck.
The Savage XL is loaded with new features that make
it the perfect choice for anyone looking for a massive great
monster truck! Check out this hugely impressive list of new parts
and custom features that are standard on the XL!
Tall All-Terrain
Tyres
New Terra Pin tyres stand tall, at 170mm (nearly 7 inches across!)
to soak up ruts, bumps, rough landings and more! The tough spike
pattern makes the Terra Pins great in grass and loose dirt, while
the chevron centre pattern give it good directional stability while
on the harder stuff. The tall sidewalls provide extra shock
absorption and allow the tyres to grip extremely as they roll over
obstacles. Speaking of obstacles, they won’t stand a chance
as the Terra Pins roll over them!3 Speed
Transmission Installed
The Savage XL features the Savage 3-speed transmission to get the
most out of the huge torque from the K5.9 engine. This gives you
the best acceleration and top speed possible, getting all the power
efficiently to the ground for maximum fun and enjoyment! The
transmission is fully adjustable, too, so you can choose how early
or late the XL will shift into higher gear!Wider Stance &
17mm Hex Hubs
To widen the stance of the Savage chassis, the XL uses aluminium
extending axles with 17mm hex hubs. These are lightweight and
tough, and fit any 17mm hex monster truck or truggy type wheel, so
your collection of monster truck wheels are perfectly usable!
Serrated steel wheel nuts grip the plastic of the wheels to keep
them locked in place, making sure that you’ll never see a
wheel bouncing past your truck!New Tougher
Suspension Uprights
The XL features all-new uprights designed for the larger tyres and
weight of this massive beast, and HPI designers have made these
parts standard across the Savage X range for even better durability
for all Savage X trucks! Beefier parts means the truck can take far
more abuse and punishment, giving you plenty of big-air thrills
before a parts breakages forces you to take a break. These are the
types of running changes HPI customers are used to, and why Savage
owners keep coming back for more and more!Reinforced
All-Metal Differentials
The Savage XL continues the run of tough, overbuilt, solid monster
trucks: a wide range of durability options, plus several new
drivetrain parts, are a standard part of the Savage XL’s
arsenal of tricks. Machined diff ring and pinion bevel gears easily
take the power of 5.9cc of nitro-burning mayhem, alloy diff cases
and 4-gear diffs with new larger diff outdrives and axles round out
the ultra-strong differentials, while extra heavy-duty dogbones get
the power to both ends and all four wheels with ease.Larger Diff
Outdrives
Getting the power to the dogbones are larger, thicker and stronger
diff outdrive cups. These machined steel outdrives can take the
punishment of the suspension movement and the power of the K5.9
engine to get you through the toughest driving conditions and
terrain with no problems!Thicker
Dogbones
New extra-thick, super duty dogbones provide the insurance you'll
want when you take the XL way off-road and into rough country! The
thicker diameter, larger ends and sleek black anodizing add up to
all the assurance you'll want that the drivetrain won't let you
down when the going gets tough! You'll be able to commit the full
power of the K5.9 engine to the ground without worrying about
drivetrain breakages or anything else!Machined Steel
Spur Gear
A machined steel 52T spur gear is the perfect match for the
horsepower of the Nitro Star K5.9 engine. With the heavy duty
vented clutchbell spinning the spur gear, you get a huge amount of
drivetrain protection with gears that won't strip, melt or break!
You'll have security and peace of mind that your truck will not
only perform superbly, but last as long as possible in the roughest
of terrain and conditions!Aluminium
Three-Shoe Clutch
The Savage XL uses a new 3-shoe aluminium clutch to get the power
from the engine into the drivetrain. Using a unique, new blend of
aluminium, the clutch shoes will resist wear, not be affected by
engine heat and last for a very long time. There's no more secure
way to get the power to the ground!High Torque Metal
Gear Steering Servo
HPI designers settled on a super-strong, extra-tough high torque
metal gear servo. With 12kg of force per centimeter, the SF-50 will
get those tall Terra Pins turning easily at any speed! There's no
need to upgrade the servo for anything else - this baby's got it
all! With the bellcrank steering and built-in servo saver, you can
be sure that the SF-50 will be fully protected against crash damage
or bad landings, too!6v NiMH Receiver
Pack and Charger
To make sure the servos have all the power they need and then some,
we're throwing in an HPI 1200mAh NiMH battery pack! This
rechargeable pack even includes a convenient wall charger so you
can make sure that the XL is always ready to rumble! You don't even
need to take the pack out of the truck to charge it - just use the
convenient charging jack built into the radio box and you'll be
ready to go in no time!
Easy to
Drive!
New Upgraded
Parts
At the heart of the Savage XL is the all-new, monstrous Nitro
Star K5.9 engine! This 5.9cc (.36 cubic inch) powerplant gives the
XL loads of torque for turning the giant tyres, giving the truck
the muscle to power over obstacles and through the toughest terrain
and conditions. The K5.9 engine delivers the muscle and grunt that
you’ll want for powering the Savage XL over any type of
terrain and through any obstacle! The low powerband supplies the
torque for getting the XL up to speed fast, and the curved manifold
and aluminium tuned pipe get the most power out of the engine. The
K5.9 is also fitted with a Roto-Start 2 for easy starting, a vented
heavy-duty clutchbell and aluminium 3-shoe clutch for tough and
reliable power transfer and a giant heatsink head so you
won’t have to worry about overheating!
New Aluminium
Exhaust System
With a curved rear-exhaust manifold directing exhaust gases to the
shiny aluminium 2-chamber tuned pipe, the specialized K5.9 exhaust
system produces loads of horsepower that just demands to be used!
The exhaust system is spring-loaded to enable it to withstand the
brutal landings of big-air jumps and driving over any type of
terrain, and is designed just for the K5.9 engine to produce
maximum punch and monstrous top speeds!Tough ABC
Construction
With true ABC construction (Aluminium case, Brass Chrome-plated
piston and cylinder), the Nitro Star K5.9 delivers massive torque
and horsepower and is as durable as possible. The three-needle
carburettor uses a 9.5mm inlet to get in as much fuel as possible
and uses a composite body to prevent heat from the engine case
affecting the fuel supply. A huge, black, flow-through finned
heatsink head keeps things cool, and even features a sweet
laser-etched logo!Dual-Stage Air
Filter
A dual stage pre-oiled air filter is used to keep dirt and fine
particles of dust from entering the engine. The air filter is
securely mounted on a 90-degree rubber tube so it is placed in the
perfect position and stay in place through any type of
driving.Roto Start 2
Installed
Get things going quickly with the Roto Start 2 starting system,
which is pre-installed onto the back of the engine. The Roto Start
2 replaces the standard pullstarter with a handheld shaft-drive
starting unit so you don’t have to deal with pullstarting the
engine by hand. Just install a charged 7.2v stick-pack battery into
the Roto Start 2 hand unit, insert the shaft into the back of the
engine, press the button and you’re off! It really
doesn’t get any easier!
|
Full-time shaft drive 4WD system for
maximum grip, power and grunt!
|
Extra tough slipper clutch for
drivetrain security when landing big-air jumps
|
Massive 160cc fuel tank for long run
times and huge amounts of bashing and racing fun.
|
Easy-access radio box protects the
electronics from splashes, dirt and more
|
|
Radio box features openings for battery
charging plug (included) and #308 illuminated Battery Level
Indicator (not included)
|
Eight long-stroke oil-filled shock
absorbers provide confidence over the jumps and on big-air
landings
|
Savage X shock towers for loads of
strength and adjustable suspension settings
|
Double wishbone suspension for amazing
handling and performance at any speed
|
|
Lightweight suspension arms improve
suspension action and give great response in corners and over
bumps
|
Large 17mm metal alloy hex hubs prevent
the hex stripping in the wheels under heavy load applications
|
Hardened 4-gear diff setup can handle
the abuse of high-horsepower engines
|
Alloy differential cases enhance
drivetrain reliability and reduce maintenance downtime
|
|
Full array of heavy-duty drivetrain
components, from clutch to brakes and outdrives to hubs, ensure you
have plenty of fun!
|
Machined steel brake hub and dual red
fibreglass brake discs provide secure and fast stopping power
|
Cam-type servo saver steering arms
improve the efficiency and power of the steering servo
|
Extremely easy access to front and rear
differentials - no chassis disassembly required to get to diffs or
tranny gears!
|
|
Savage X-style vertical transmission
case for fast disassembly and simple access to internal gears
|
Stronger transmission case with extra
webbing and improved strength over earlier Savage designs
|
Full set of rubber-sealed ball bearings
for maximum efficiency and power from the engine.
|
Bigger, tougher 'Gigante' bodyshell has
classic Savage styling and strength with 0.60" thickness
polycarbonate
|
RTR - PERFORMANCE
STRAIGHT FROM THE BOX
HPI
makes it as easy as possible for beginners to get into Nitro RC.
The Savage XL RTR it is completely pre-built and ready to go right
out of the box! Everything is assembled and tuned for you by
professionals - diffs, slipper clutch, shocks and more are perfect
before you even open the kit and with all the top Savage options
already installed, so you don't have to do a thing to get going
fast! HPI Ready-To-Run models bring you the same high performance
and quality that you'd expect from a high end model car kit but
with the added convenience of being factory pre-assembled to the
highest standards - giving you a high performance RC truck straight
from the box! HPI RTR cars and trucks are 98% factory assembled -
they come Ready-To-Run and equipped with all the radio gear
required. Just a few steps are needed to get your car up and
running, such as adding the batteries to the transmitter and
receiver and if you have a nitro powered car, running in the engine
- which is now even easier with our comprehensive manual and HPI RC
cars DVD which are both included in every box.Full Assembly
Instructions and HPI RC Cars DVD
As with all HPI cars and trucks, you get a full, in depth instruction manual with step by step instructions that allow you to easily disassemble and reassemble your monster truck for maintenance and easy servicing. The information on the HPI RC Cars DVD provides a complete and detailed introduction to the fascinating world of RC model cars. This DVD will show you step by step how to start and run in a Nitro engine, and how to get the best performance from your HPI RC car. The HPI RC Car DVD is your personal RC car expert in a box!
2.4GHz Radio
System with Failsafe
The reliable and sturdy HPI TF-20 2.4GHz radio controls the Savage
XL, giving you superb control in a well-designed pistol-grip radio!
The steering wheel design makes you feel as if you're actually
driving the truck, and the trigger-style throttle and brake
controls provide you with finger-sensitive action when accelerating
and stopping! The radio transmitter features DSSS technology that
eliminates the need for frequency crystals so you can drive with
your friends without worrying about frequency conflicts or
interference. The TF-20 has servo reverse switches, easy access to
radio adjustments and simple AA battery replacement. The HPI TF-20
radio gives you long-range and reliable communication with your
truck. If you ever want to upgrade your electronics you'll find it
extremely easy, because all of the electronics are standard-size RC
components with standardized connectors. The components can be
upgraded or replaced whenever you like, or even moved into a
different RC vehicle in the future. Electronic
Failsafe Nitro racers have known for a long time that
having a working failsafe system is important for those 'just in
case' moments - some unforeseen event that could make their car go
out of control. With a truck as fast and large as the Savage XL,
this is even more important! The failsafe ensures that should your
Savage monster truck ever lose radio signal, instead of flying out
of control it will come to a safe and controlled stop! There's
nothing like peace of mind.Available With
Either Blue Or Orange 'Gigante' Bodyshell!
With the Savage XL, you get your choice of a striking pre-painted
blue or orange GT-2 bodyshell with a great racing scheme, or you
can customize your truck with any of the clear or pre-painted
polycarbonate bodyshells from the huge range of HPI Savage
bodyshells! Choose from the cool Retro Collection or check out the
ultra-modern set of HPI bodyshells!
#104246 - Savage XL
2.4GHz Comes with Nitro Star K5.9 engine, HPI TF-20
2.4GHz
radio system, SF-10 throttle/brake servo, SF-50 high torque
metal gear steering servo,
painted & trimmed bodyshell, and receiver pack wall charger .
Also contains detailed instruction manual
and HPI RC Cars DVD. Ready to bash straight from the
box!
#110605 HPI Nitro Starter Pack includes almost everything you need, just add fuel, 7.2v battery and stick pack charger!
Specification may be subject to change
