BUILD the

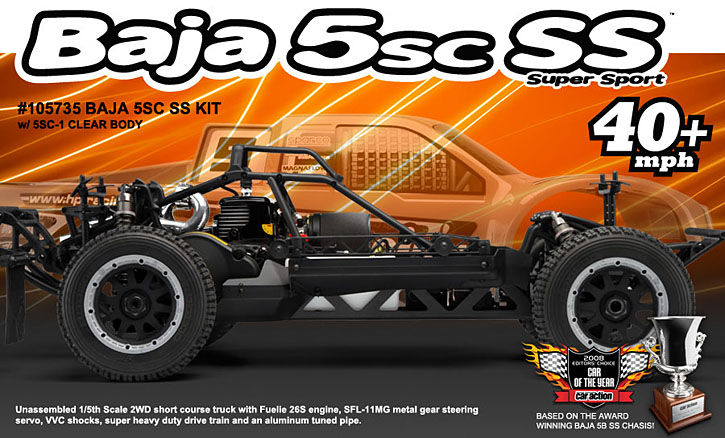

Ultimate 1/5 scale Baja: the Baja 5SC SS!
The exciting Baja 5SC SS gets the SS
treatment! HPI is proud to announce the latest addition to the Baja
line-up, the Baja 5SC SS. Like the rest of the SS line, the Baja
5SC SS comes as an unassembled kit that you get to build from the
ground up. But we don't stop there; the Baja 5SC SS is equipped
with all of the high performance goods in the box, right down to a
clear SC-1 body that you can paint just the way you want for a
truly custom truck. The powerplant has been upgraded to the high
performance Fuelie 26s engine, coupled to the optional aluminum
tuned pipe with steel header. Combined with the 8,000 RPM clutch,
the Baja 5SC SS has some serious grunt to help it propel to speeds
in excess of 40MPH! We have also included the stock muffler if you
feel like quieting things down a bit. Traction comes from the high
performance and extremely sticky HB Rodeoo tires mounted on the new
TR-10 wheels.
FUELIE 26S
ENGINE
HIGH PERFORMANCE
26CC TWO-STROKE ENGINE
MORE Powerful 26S
Engine
|
Aluminum Tuned
Pipe Included
|
8,000 RPM
Lightweight Clutch
|
The Fuelie 26S CC engine is a powerful 2.9HP engine which revs out at 15,000rpm max, features a 12.7mm carburetor and aluminum construction. | The header is made from large diameter steel tubing for extra strength. The stinger design is optimized for a perfect fit in the Baja rear cage. | This lightweight racing clutch combined with the heavy duty spring gives the 5SC SS a powerful launch at high RPMs for faster acceleration! |

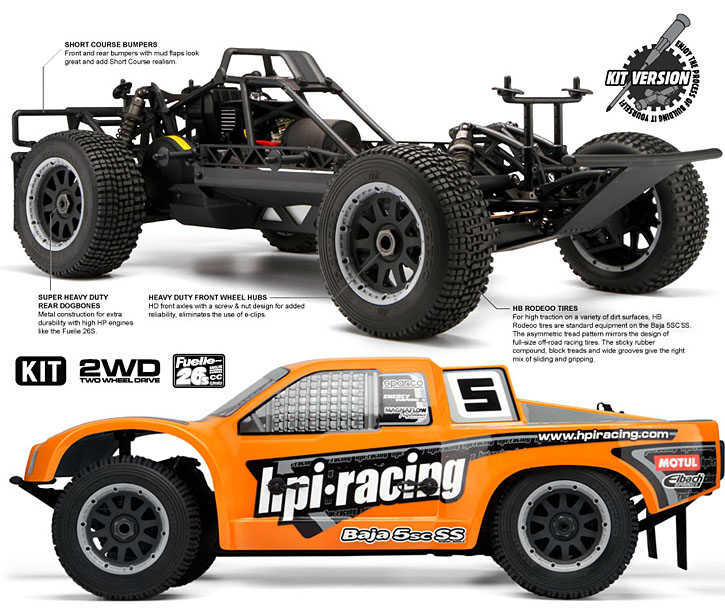

Clear Large-Scale
Short Course Body
The Baja 5SC SS ships with a realistic wide Short Course body that
is clear to allow you to put your own personal stamp on the truck.
Express yourself with a custom paint scheme on this huge die-cut
bodyshell, which is already trimmed and ready for your own
design!Heavy Duty Front
Wheel Hubs
To keep in sync with the Super Heavy Duty drivetrain, the Baja 5SC
also comes with Heavy Duty front wheel hubs. These new axles
utilize a screw and nut design that eliminates the older e-clip
design, which further improves the reliability of the truck.HB Rodeoo Short
Course tyres and TR-10 Wheels
For high traction on a variety of dirt surfaces, HB Rodeoo tyres
are standard equipment on the Baja 5SC. The asymmetric tread
pattern mirrors the design of full-size off-road racing tyres. The
sticky rubber compound, block treads and wide grooves give the
right mix of sliding and gripping. Concentric rings on the
sidewalls give extra grip if things get really hairy! Bold 10-spoke
wheels (TR-10) using heavy duty beadlock rings add to the realistic
Short Course looks of the Baja 5SC.Front & Rear Short
Course Bumpers
The final touch in completing the scale look of the Baja 5SC is a
set of realistic short course bumpers that allow you to give your
fellow racers a 'love tap' without risking a major incident. The
bar-style front and rear bumpers look great and, along with the mud
flaps, add that extra bit of Short Course realism!Adjustable
One-Piece Rear Hubs
Adjustable rear hubs have been added for increased durability and
easier adjustment of the toe-in setting. These hubs are lighter
weight and allow toe-in adjustments of 0, 1, 2, 3, and 4 degrees to
help match the truck performance to track conditions.Super Heavy Duty
Parts
Because of the ever-increasing power
demands of Baja owners around the world, and the constant desire to
cram as much power in the Baja chassis as possible, we've added
all-new SUPER Heavy Duty drivetrain parts that will make sure the
Baja 5SC can handle extreme conditions and massive power!
Super Heavy Duty
Drive Shafts
|
Super Heavy Duty
Diff Shafts
|
Super Heavy Duty
Drive Axles
|
All-new extra-thick 9mm dogbones are the starting point of the 5SC drivetrain upgrade - these are new, thicker and stronger to outlast the roughest rides and racing action you can find! New wider rubber boots are included to keep the dirt and mud away. | Getting the power from the diff gears to the new dogbones is a wider diff shaft that perfectly fits the increased diameter of the dogbones. | The Baja 5SC is fitted with new Super HD drive axles to get power to the rear wheels, which fit the thicker dogbones. |
MORE BAJA 5SC SS
FEATURES:
VISCOUS TORQUE
DIFF
Unique in the world of large-scale racing, the HPI
Viscous Torque Differential gets the power to the rear wheels as
smooth as silk. It's easy to tune with optional diff oils and is
fully fitted with hardened metal gears and an alloy case.ALL METAL GEAR
TRANSMISSION
From the input shaft and idler gear to the
alloy-encased differential, every gear inside the sturdy Baja 5SC
SS transmission is made from long-life alloy to keep your truck
running all day long with minimal maintenance.8,000 RPM
CLUTCH
Standard on the Baja 5SC SS, this lightweight racing
clutch combined with the heavy duty spring gives the 5SC SS a
powerful launch at high RPMs for faster acceleration!LONG TRAVEL
SUSPENSION
The awesome Baja suspension really comes into its own
with long-stroke VVC/HD shock absorbers and high-sidewall truck
tyres, letting the tyres do their business whether you're driving
over rutted-out whoops or flying over a big tabletop!HEAVY DUTY SHOCK
ABSORBERS
VVC/HD shocks deliver improved handling over rough
terrain and feature large 6mm diameter shock shafts for increased
durability. Threaded shock bodies are used for easy adjustment of
ride height.DUAL VENTED DISC
BRAKE
Steel/aluminum hybrid brake rotors and semi-metallic
brake pads handle braking duties, while a special venting system
keeps the brakes cool for consistent stopping power.LARGE 700cc FUEL
TANK
For runtimes of up to 45 minutes, the Baja 5SC SS fuel
tank holds up to 700cc of pre-mixed fuel - that's over half a
liter! And just in case you clip a track barrier and flip over, the
tank is equipped with a 'clunk' device that allows the engine to
continue running even if the truck is resting on its roof.SFL-11MG
SERVO
The hi-torque SFL-11MG servo features extra tough all
metal gears for durability, an aluminum steering arm and a water
resistant case.TOUGH RADIO
BOX
An enclosed radio box keeps water and dirt away from
the radio receiver and receiver battery. The on/off switch and
recharging jack are covered with soft rubber plugs for additional
protection.DIRT GUARDS
The Baja 5SC SS has full-length dirt guards to keep
mud, rocks and water out of the main chassis area. The guards
continue all the way to the engine and help keep cleaning time to a
minimum. And, mud flaps on the rear bumper add to the realistic
Short Course appearance.PERFORMANCE
STRAIGHT FROM THE BOX
Full Assembly
Instructions
HPI makes it super-easy to get into large scale! Just like all HPI
cars and trucks, you get a full, in-depth instruction manual with
step by step instructions that allow you to easily assemble and
maintain your truck in the years to come. SPECIFICATIONS: Length:
900mm Width F/R: FRONT 440mm / REAR 460mm Height: 320mm Track F/R:
FRONT 370mm / REAR 380mm Wheelbase: 570mm Weight: ~12.6kg / ~27.9lb
(without fuel)
WHAT YOU NEED
2-channel Radio Transmitter with Receiver Throttle Servo (standard
size)
Receiver Battery (5-cell hump pack or equivalent)
Pump Petrol 2 Cycle Engine
Oil 5 Litre Fuel Can
AA Batteries for Transmitter
Battery Charger for receiver battery
Polycarbonate Spray Paint for bodyshell
Specification may be subject to change
