E-FIRESTORM 10T - UPDATED WITH FANTASTIC NEW FEATURES!
The E-Firestorm 10T is already a popular,
durable and quick truck, so how could HPI designers possibly make
it better? By adding crystalless 2.4GHz radio gear to make it easy
to drive with your friends and waterproof electronics that allow
you to drive in really tough conditions! We didn’t want to
stop there, so we added a LiPo battery safety cut-off to the
speedo, tossed in a powerful 8.4 volt battery pack and charger,
plus AA batteries for the transmitter! To top things off
we’ve upgraded the looks with stylish chrome-plated Split 5
wheels and a sweet all-new design for the bodyshell!
WATERPROOF
The E-Firestorm now has an enclosed receiver box to keep the 2.4GHz
receiver protected from the elements for glitch-free operation. A
new SS-20WR water-resistant steering servo means
your E-Firestorm won't be stopped by wet conditions like rain,
snow, and mud.2.4GHz RADIO
SYSTEM
Controlling the E-Firestorm 10T is easy with the HPI 2.4GHz radio
system. No need to worry about changing crystals, the radio
prevents frequency conflicts automatically. If the truck loses
radio signal or battery power, an electronic failsafe will bring it
to a safe and controlled stop.WATERPROOF SPEEDO
with LiPo CUT-OFF
Unique to the E-Firestorm 10T, the waterproof SC-3SWP2 electronic
speed controller features a LiPo battery cut-off to make your
driving time safe as well as fun! The kit comes with a powerful
2000mAh 8.4v NiMH battery which doesn't need a cut-off, but if you
want to use an optional 2S Lithium-Polymer battery the speedo stops
the motor and other electronics drawing power from the battery
before it reaches the lowest safe voltage level. This makes sure
any LiPo battery isn't discharged too much, extending its lifetime
while protecting your batteries!100% READY TO
RUN!
The E-Firestorm 10T 2.4GHz comes with absolutely everything you
need right out of the box! You get a powerful 8.4 volt battery for
huge acceleration and maximum punch, a handy wall charger for safe
and reliable charging, PLUS alkaline batteries for the transmitter!
It absolutely does not get easier to get right into off-road
driving!BUILT TOUGH

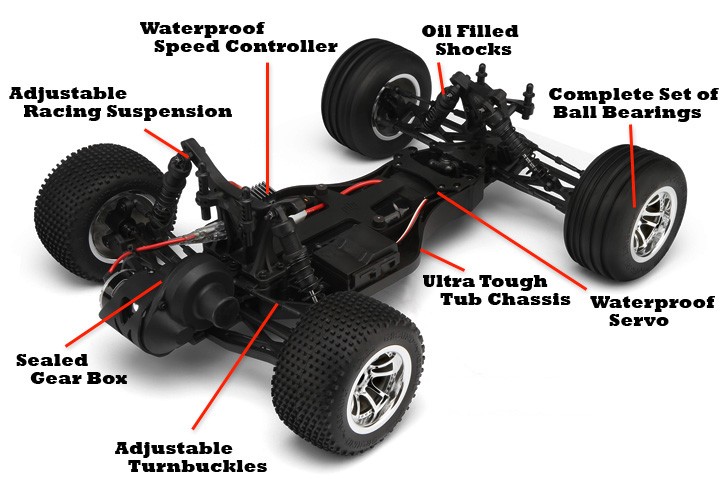

TOUGH is the word that best describes the E-Firestorm 10T.
Everywhere you look, the critical parts have been designed to
withstand the rigors of off-road racing. The key to durability for
any 2WD stadium truck is the transmission, and the E-Firestorm 10T
transmission is extra tough, using all metal gears to easily handle
the power of hot electric motors. Inside the transmission is a
sealed planetary differential with, again, all metal gears for
extra toughness. And everything is protected by an adjustable
dual-pad slipper clutch mated to durable 48 pitch gears, with tough

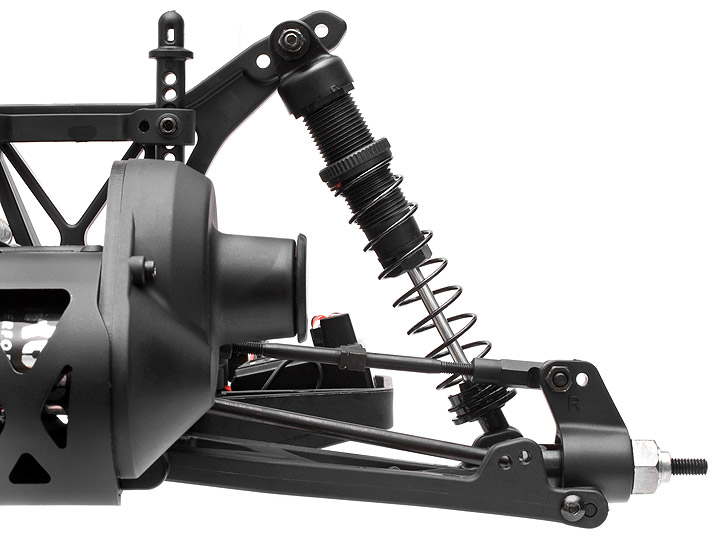

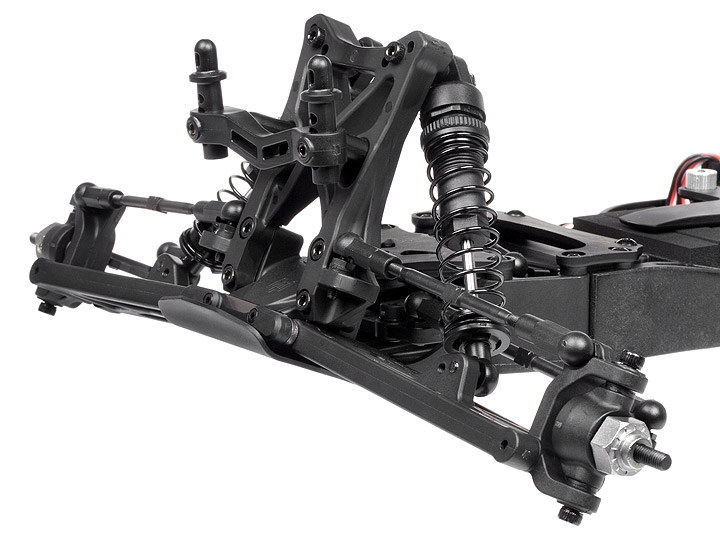

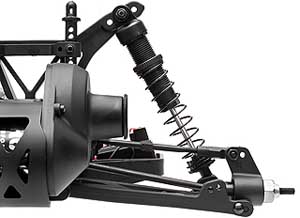

steel dogbones and axles transmit the power to the tires.COMPLETE
RACING SUSPENSION
LOOKS GREAT!

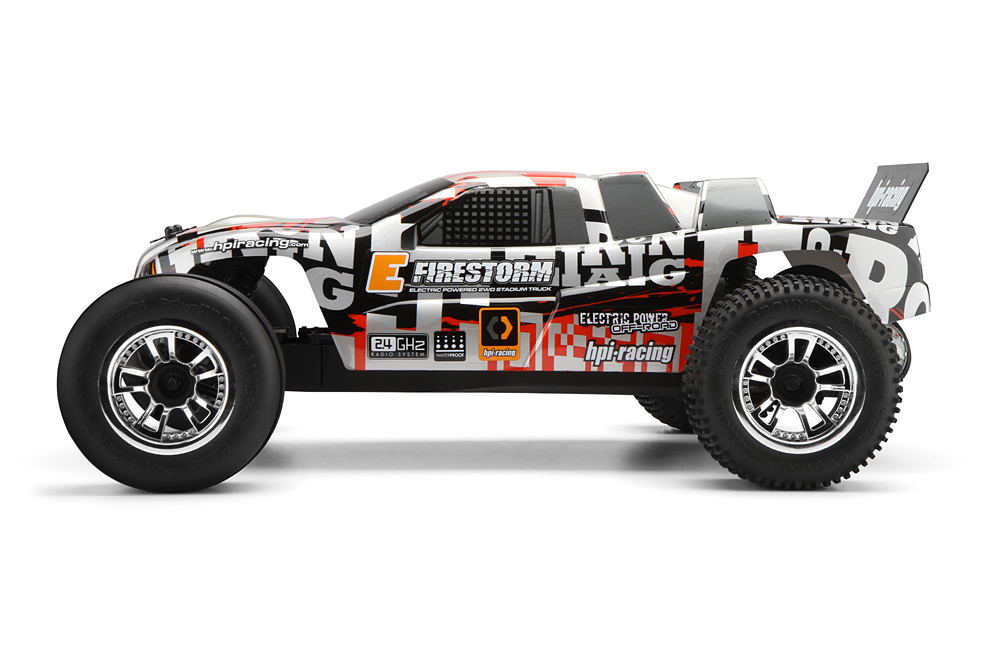

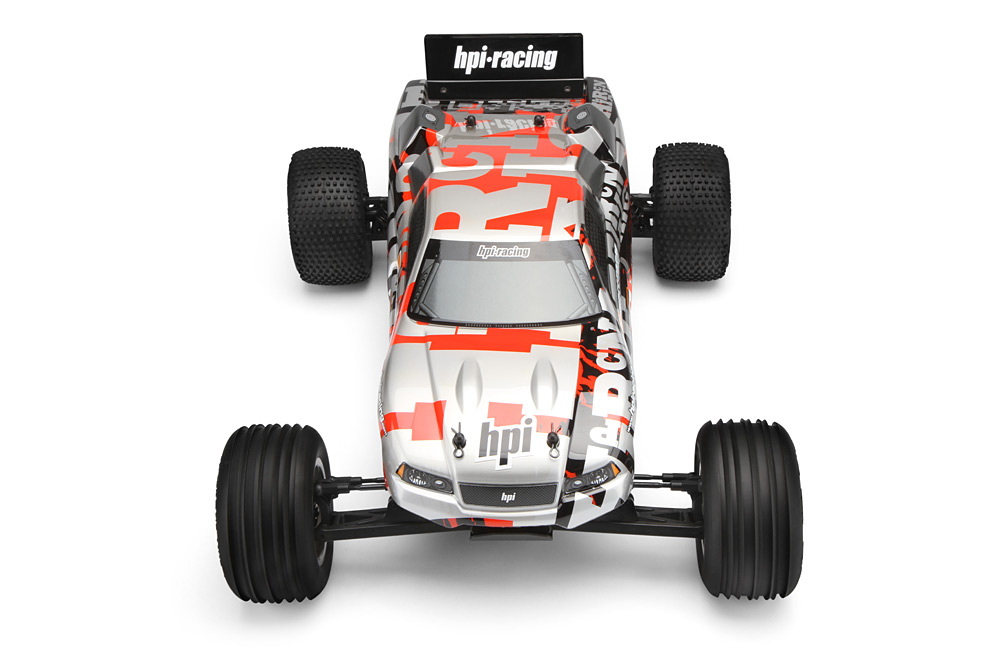

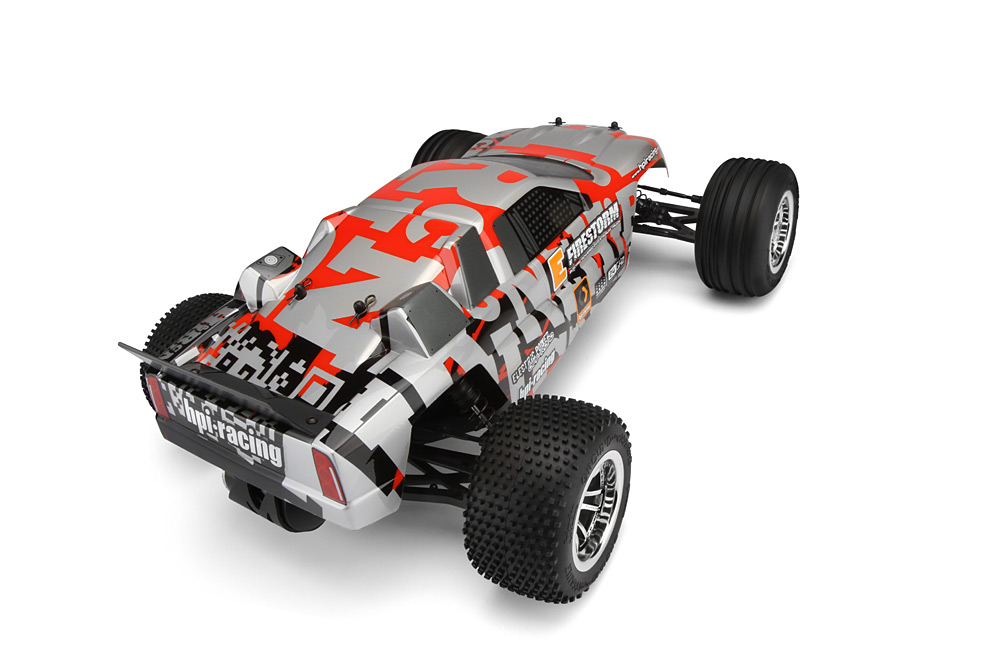

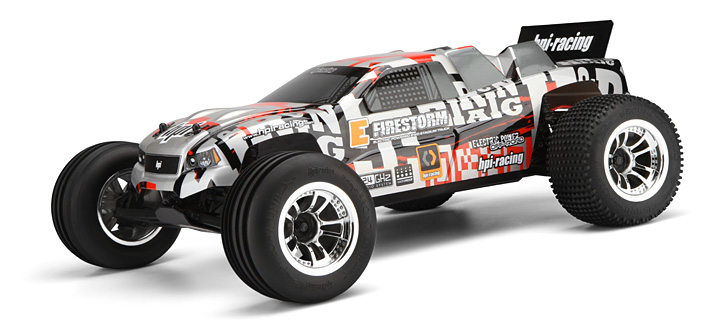

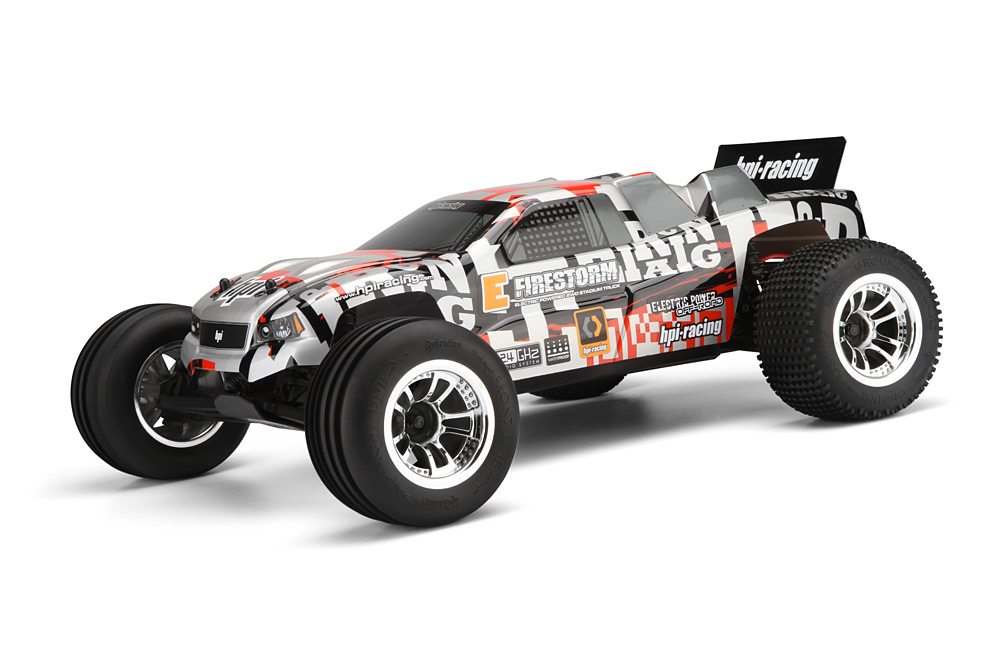

The E-Firestorm 10T features a brand new pre-painted bodyshell in a
cool 'megaprint' design. The DSX-2 body comes completely trimmed,
decaled and mounted for the ultimate in ease. The intricate paint
design features an extreme sports-inspired layout for a
concours-quality appearance. You can always customize your truck
with any of the clear or pre-painted polycarbonate body shells from
the huge assortment of HPI bodies and other manufacturers as well!
To set off the new paint schemes, the E-Firestorm 10T is topped off
with a set of chrome Split 5 wheels.  |
||
 |
 |
 |
FULL ASSEMBLY
INSTRUCTIONS
As with all HPI cars and trucks, you get a full, in-depth
instruction manual with step-by-step instructions that allow you to
easily disassemble and reassemble your truck for maintenance and
easy servicing. The manual also includes a handy parts list and
full-scale drawings of the parts and hardware.
E-FIRESTORM 10T
2.4GHz FEATURES SUMMARY:
- Waterproof ESC for smooth and efficient motor control
- LiPo-safe battery voltage cut-off for using LiPo battery packs
- SS-20WR water-resistant steering servo
- Composite main chassis is lightweight and durable
- Suspension geometry and components from the Firestorm 10T
- Nimble handling and easy to drive in all conditions
- Many existing Firestorm option parts bolt directly on to maximize performance
- Vertically adjustable front and rear camber links are easily adjustable to suit conditions and driving styles
- Adjustable shock positions (3 upper and 2 lower) to maximize suspension performance
- Adjustable wheelbase to tune the length of the truck to suit driving conditions
- Adjustable rear toe and anti-squat for quick adjustment to fine tune handling
- High quality thumbscrews on battery retainer for secure and tool-free battery access. Fits most Li-Po packs an 6-7 cell NiMh packs
- Dual pad slipper clutch protects the drive train on hard landings
- Durable low-profile 2.6:1 ratio ALL METAL gear transmission is extremely durable and capable of handling very powerful motors
- Sealed planetary gear differential for nearly zero maintenance, maximum reliability and convenience of tuning differential action with heavy weight silicone oils
- Strong alloy steel dog bones for simplicity and durability
- 14 ball bearings throughout the drive train for maximum speed and efficiency
- Turnbuckles used for each camber link and steering rod allow fine adjustment of the suspension geometry to suit your driving style and track conditions
- Threaded shock bodies allow fine adjustment of ride height
- Silicone oil filled shocks for high performance and more consistent damping in extreme temperatures
- Aluminum 12mm wheel hex adapters used front and rear are compatible with all HPI 1/10th scale truck rear wheels. Allows many different wheel and tire combinations to adapt to driving conditions and numerous styling options
- Alloy steel front axles are extremely durable
- Captured hinge pin design used throughout for easy maintenance with no E-clips
- Lay down steering servo for the lowest possible center of gravity
- High quality hex head machine screws used throughout for simple maintenance
- Adjustable height body mounts allow a variety of body styles to fit the chassis for a custom look
- Ground Assault taper pin rear tires and Front Line ribbed front tires for high traction and long life on nearly any surface
- Shiny chrome Split 5 wheels made from high impact nylon for extreme durability
- 48 pitch pinion and spur gear for maximum efficiency and reliability, protected by a molded gear cover to keep debris away from the gears
- Pre-painted DSX-2 body with custom silkscreen assets/images
- 2000mAh 8.4 volt battery pack and wall charger included
- Transmitter AA batteries included - get out and race!
RTR E-FIRESTORM
10T 2.4GHz
Pre-Assembled 1/10th scale 2WD
electric powered truck with 2.4GHz radio system, SS-20WR
water-resistant servo, 8.4V 2000mAh NiMH battery pack, charger, AA
batteries and painted DSX-2 body.
#105845 RTR E-FIRESTORM 10T 2.4GHz
| SPECIFICATIONS: Length: 425mm Front Width: 325mm Rear Width: 325mm Wheelbase: Adjustable | WHAT YOU NEED: Nothing at all! |
Specification may be subject to change
