World
Champion Quality in an RTR Package
The D8S combines everything you can want
for top-level buggy racing into one convenient package - just add
fuel and batteries and get on the track! With the World
Championship-winning heritage behind the HB D8 combined with the
ready to run flexibility of HPI radio gear and the bulletproof
Nitro Star F3.5 engine, you can easily get the best of both worlds
as soon as you open the box. Race-proven by World Champions and
backed by HPI, you can't go wrong with the HPI D8S. Because the D8S
chassis and suspension parts are exactly the same as the HB D8, the
D8S is ready to upgrade with Atsushi Hara Edition parts from
HB!
All of the latest HPI kits are now fitted
with the comfortable and feature-packed HPI 2.4GHz radio
system for supreme control and confidence! The latest
digital 2.4GHz radio technology allows you to confidently drive
your HPI kit with other drivers without worrying about things like
frequencies or radio conflicts. The radio features a pistol-grip
design with steering wheel for ease of use and realistic
control, compact size, servo reversing and a light
weight due to it requiring only four AA batteries.With the
adjustable, built-in failsafe feature, you will be protected in
case the radio ever loses signal.
Radio Features Summary
- Digital 2.4GHz technology
- Run your HPI kit with other drivers without worrying about frequencies!
- Adjustable built-in failsafe
- Servo reversing
- Centre trim (steering and throttle )
- Light weight (only 4 AA batteries required)
- Simple switch for legal use in France

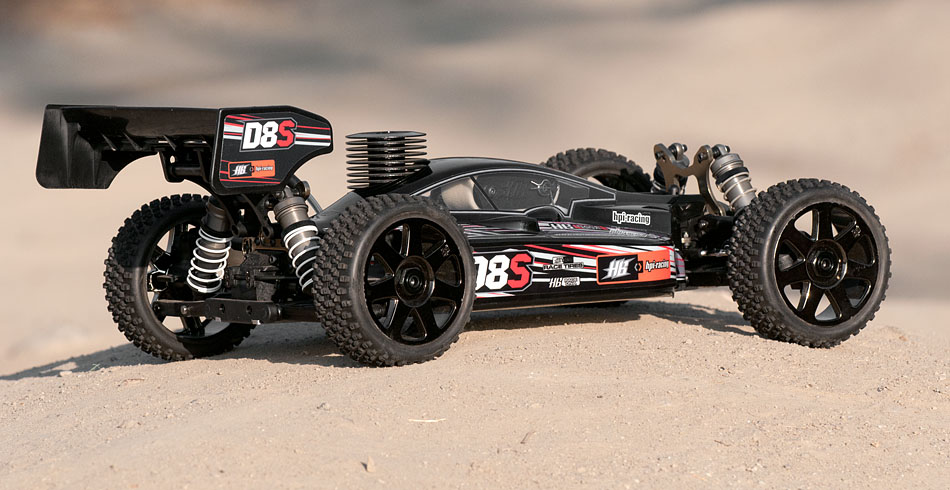

The D8S is a 'race roller' version of the HB
D8, making it the perfect way to jump into nitro buggy racing! With
the design and capability of the World Champion D8 as its
foundation, the D8S is your introduction to race-winning
glory!
Driving the D8S forward is the F3.5 engine,
which has been an extra-strong engine fitted in Savage monster
truck and Trophy buggy kits for many years. The F3.5 is equipped
with a pullstarter for easy starting without an expensive starter
box, and it can also be started using a starter box for twice the
convenience. For maximum power, the F3.5 is fitted with an
aluminium tuned pipe for plenty of wheel-spinning torque off the
line and loads of top speed at full RPM!
The D8S is fully equipped and ready to race.
With the 2.4GHz radio, you can adjust everything you'd expect on
more expensive computer radios. The SB-5 steering servo is
extra-powerful to handling full-throttle race conditions, which
means it can handle the punishment of steering the wheels at full
speed, the ultimate test of a servo's strength.
Aiding clean-up of the chassis at the end of
the race day is the easily removable radio tray, just a few screws
takes all the electronics out of the chassis to keep fluids and
water away from expensive servos, receiver, etc. We know racers
like to get dirty, but a clean car is a happy car! (Note: Servos
shown in picture are for illustrative purposes only.)

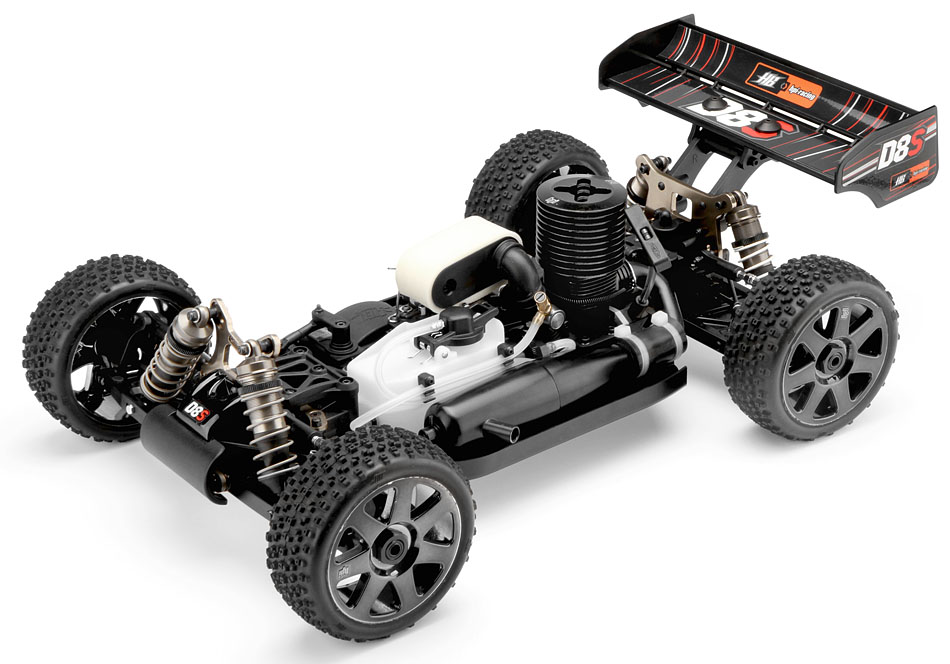

Strong composite chassis braces connect the
front and rear bulkheads to the middle of the chassis for extra
rigidity. Special composite material is used for extreme light
weight, helping to enhance the driving feel, acceleration and
braking of the car.
With the race-winning suspension design and
features of the D8 on board, you will experience a pure driving
feel and total adjustability like never before! Tune the D8S to
your driving style and track conditions with the aid of the full
range of adjustments: shock position, oil, springs, roll centre,
wheelbase, camber, sway bars and more! the front suspension
features a long list of features, including the HB Inverse Steering
Block Design, adjustable roll centre, thick turnbuckle links,
aligned king pin and universal joint pivots, sway bar, steel
turnbuckles and HB's own counter-rotating shock mount screws.
At the rear end, the D8 has everything you'd
expect from an all-out competition kit, with optional hinge pin
holes for the uprights, adjustable roll centre, thick turnbuckle
links, sway bar, steel turnbuckles and HB counter-rotating shock
mount screws on the suspension arms.
The D8 solid suspension arms prevent mud
build-up and also stop rocks from binding the suspension. The exact
compound of composite material used is a Team HB secret, and was
developed over months of testing in wet and dry racing conditions.
Each suspension arm also features handy travel-limiting droop
screws to allow you extra tuning ability when you're up against the
clock and the competition.
The D8S steering system uses thick anodized
aluminium steering bar and thick steel turnbuckles to guide you
through the pack during a race. Steel screws, locking nuts and
sturdy nylon steering arms and turnbuckle links complete the
steering. A hand-adjustable servo saver provides extra peace of
mind for your steering servo, and four sealed ball bearings let the
steering glide effortlessly in the muckiest of conditions.
The HB Big Bore shocks are MASSIVE - at 16mm
across, they are among the biggest shocks you can find on any
racing kit. With rubber boots, hard-anodized bodies and threaded
adjustments, they have all the standard features you'd expect from
any top-level competition kit.
The D8S is equipped with the World Champion
drivetrain straight out of the D8 buggy - three oil-filled gear
diffs with spiral-cut gears, full-time shaft 4WD drivetrain
supported by rubber-sealed ball bearings, high-strength steel
driveshafts and axles and much more!
Controlled braking ability is provided by
the front and rear, individually adjustable brakes. Constructed of
thick fibre and drilled for low rotating mass and extra cooling
ability, the brakes are extremely powerful without being too
'grabby'. They're also extremely easy to tune because of the
accessible linkage.
The suspension mounts front and rear are
machined from sturdy aluminium and anodized to match the chassis
and steering plate. A steel screw and washer hold the suspension
hinge pins firmly in place so you don't have to worry about them
falling out on the track.
HPI makes it as easy as possible to get into
RC off-road action. The D8S is completely pre-built and ready to go
right out of the box! Everything is assembled and tuned for you by
professionals - diffs, shocks, suspension and more are perfect
before you even open the package. HPI Ready-To-Run vehicles bring
you the same high performance and quality that you'd expect from a
high end RC kit but with the added convenience of being factory
pre-assembled to the highest standards - giving you a high
performance RC buggy straight from the box!

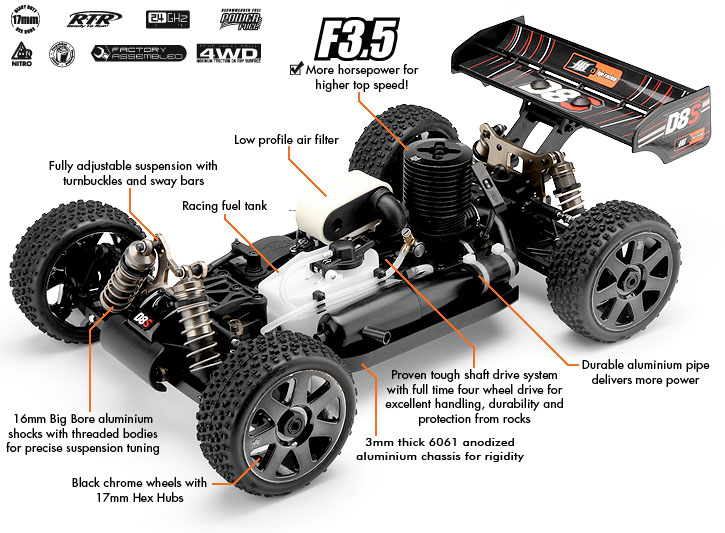

Features Summary
- Ready to Race version of the World Champion D8 buggy
- Fitted with Nitro Star F3.5 engine and pullstarter
- 2.4GHz channel radio system with failsafe
- Powerful SB-5 steering servo
- SF-10W waterproof throttle/brake servo
- 3mm 6061 aluminium chassis with centralized weight balance
- Cast aluminium engine mount
- Easy radio tray removal for maintenance and cleaning
- Composite chassis braces for extra driving feel
- Lightening cut-outs under servos, engine and clutch bell
- Tough oil-filled gear differentials
- Spiral-cut diff gears for extra durability
- Dual fiber disk brakes with easy-access adjustable linkage
- Secure forward-mounted receiver & battery box
- Unique HB solid suspension arms
- Front universal dogbones
- Silicone oil-filled HB Big Bore shocks with threaded aluminium bodies
- HB Inverse Steering Block Design front end
- Thick steel turnbuckles
- Total adjustability: roll centre, wheelbase, camber, sway bar and more
- Top quality HB racing wheels and tires
- Aluminium shock towers have multiple shock mounting positions
- HB counter-rotating shock mount screws on the suspension arms
- Quick access to all critical maintenance points
- Dual bellcrank steering with aluminium drag link
- Cam type servo saver
- Large fuel tank with internal baffles
- Fuel tank clunk helps engine stay running if car is upside-down
- All socket head hardware
- Full set of rubber-sealed ball bearings

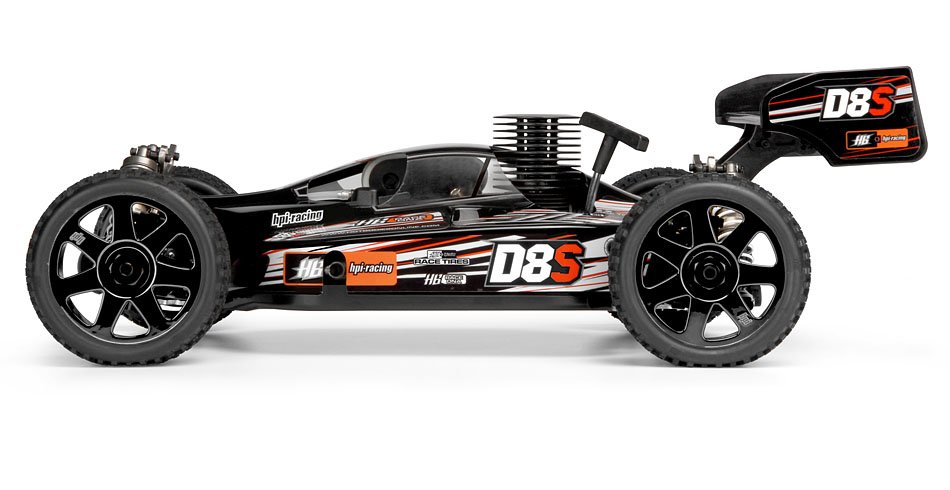

#106118 RTR D8S
Pre-Assembled 4WD 1/8 scale racing buggy with 2.4GHz radio system,
Nitro Star F3.5 engine w/ pullstart and tuned pipe, SB-5 and SF-20W
servos and painted buggy body.
| SPECIFICATIONS: Length: 500mm Width: 305mm Height: 179mm Wheelbase: 320mm (adjustable) Track Width Front/Rear (from centre of tyres): 260mm Tyres: 40mm wide x 110mm (outer diameter), 80mm inner diameter Engine: Big Block 3.5cc (.21 cubic inches) Drivetrain: Full-Time Shaft 4WD |
WHAT YOU NEED: Nitro Car Fuel -
HPI Power Fuel recommended! Fuel Bottle -
#74115 500cc Fuel Bottle
recommended! Glow Plug Igniter - #74106 Glow Plug Starter recommended!
HPI Nitro Starter Pack includes almost everything you
need! #110605
|
Specification may be subject to change
