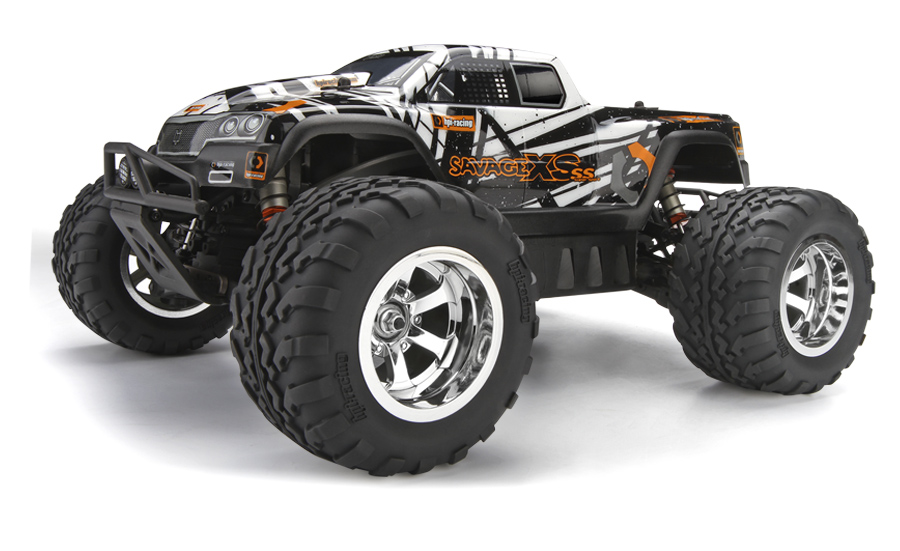

The
Savage XS Gets the SS Kit Treatment!
Immediately after the Savage XS was
released, our most hardcore fans started asking when the kit
version would be available! Patience, we told them, let us get a
few options parts released first! Well, now we’ve got a
growing range of hot option parts released and the Savage XS SS is
here! Starting with the base Savage XS, we supply all the parts in
a DIY build-it-yourself kit. Break out the tools, turn up the music
and hide the phone – it’s building time! Our fully
illustrated instruction manual takes you step by step to build the
Savage XS to your exact specs. Full-size part references and
exploded views help you get the kit built quickly and without fuss.
As a bonus, the Savage XS SS includes fantastic option parts to get
you started on the customizations! For some extra bling you get
aluminium shock absorbers with orange-anodized tops, bottoms and
shock collars. A set of front and rear universal driveshafts give
you extra efficiency and durability. For quick camber adjustments
you also get a full set of adjustable turnbuckles. You can even add
extra option parts as you build up the kit! Finally, you get to
choose the exact electronics that go in the truck. Choose a quick
servo for fast, nimble action, or go with a powerful servo for
stunt work. Fit in a 2S-capable motor/speed controller set for
all-around action and speed run, or go totally mental with a
3S-capable combination! It’s your choice with the Savage XS
SS!

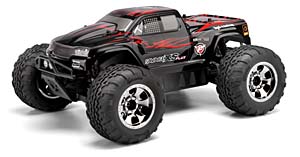

Note: some pictures show RTR version of Savage
XS Can't see the picture gallery above? Please upgrade your web browser or try a browser that
supports
HTML5 to see our awesome action and studio pictures!
Watch the latest Savage XS video: Savage XS v Concrete v
Cameras! (RTR version shown)
SAVAGE XS SS FEATURES
A full, in-depth instruction manual with
step-by-step instructions that allow you to easily disassemble and
reassemble your car for maintenance and easy servicing. The manual
also includes a handy parts list and full-scale drawings of the
parts and hardware.

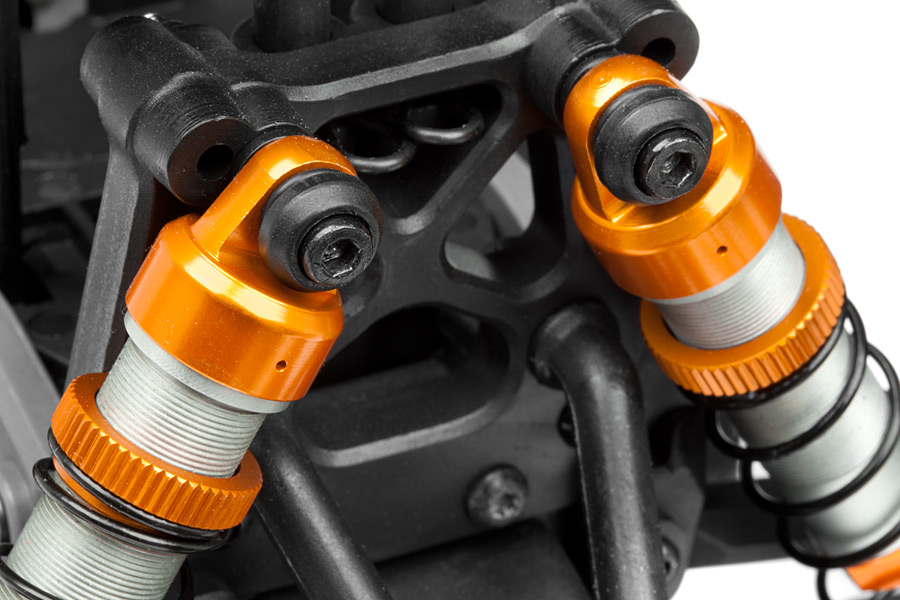

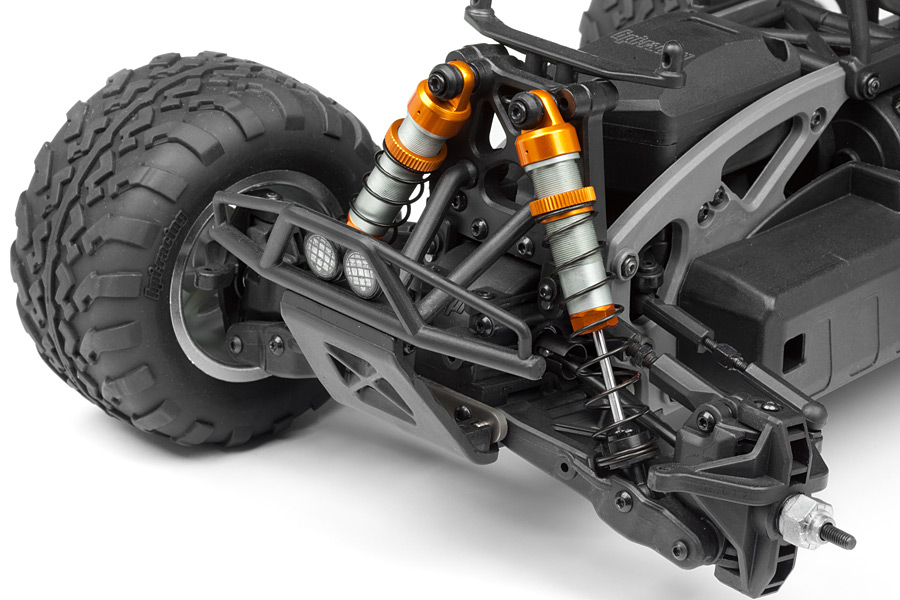

Four aluminium-body threaded shocks give the
suspension action you need to get out and blast through the
roughest of tracks or off-road terrain. The aluminium shocks are
lightweight and strong, and provide smooth and consistent damping.
For extra style points, the shock caps and adjuster nuts are
anodized bright orange for a cool custom look!

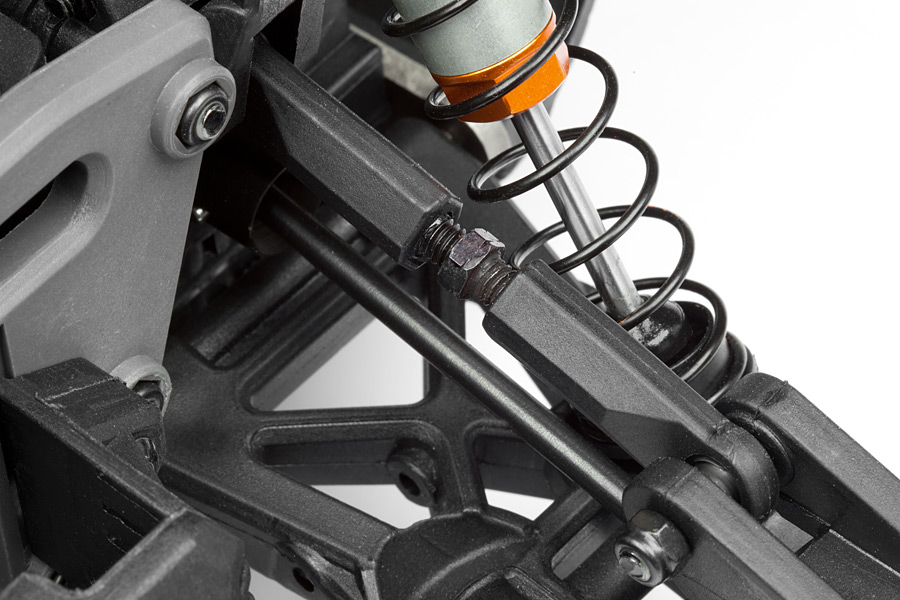

Tune your Savage XS SS for extra performance
with this Adjustable Upper Arm set! It includes tough plastic rod
ends with metal swivel balls and steel turnbuckles for awesome
racing performance potential.
Universal driveshafts offer more efficient
transfer of power to the wheels, for higher speed and smoother
suspension movement. These are machined from high strength steel
for maximum durability, and are tougher than the stock dogbones and
perfect for extreme driving conditions and wild stunts. The unique
design is fully rebuildable and eliminates the set screw found on
most universal dogbones, making routine maintenance easier.

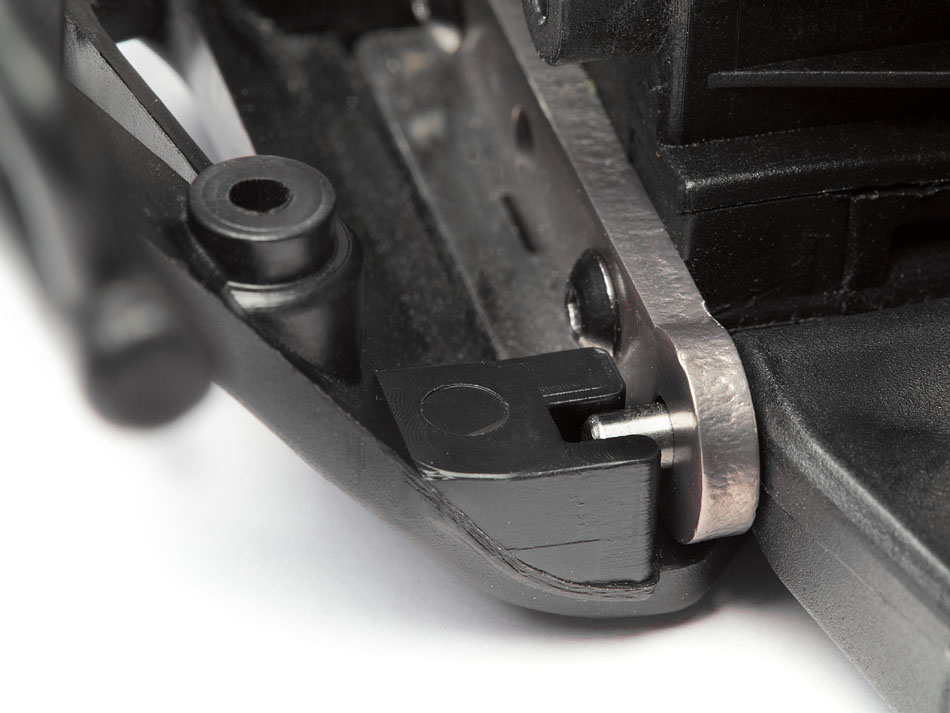

Never worry about loosing an E-Clip ever
again with the E-Clip eliminator suspension shaft set for the
Savage XS SS - you get easy maintenance and parts replacement in
one easy and convenient part!
The Savage XS SS is designed to fit 'full
size' 1/10th scale electronics, i.e. servo, speed controller,
motor, battery and receiver. This gives the Savage XS SS the power
of full size 1/10th scale motors and batteries and also
compatibility with a huge range of hop up electronics. For the best
combination of power and driveability, we recommend the HPI
#104924 Q-Base speed controller and
the #106768 Flux Vektor 4000Kv
brushless motor!

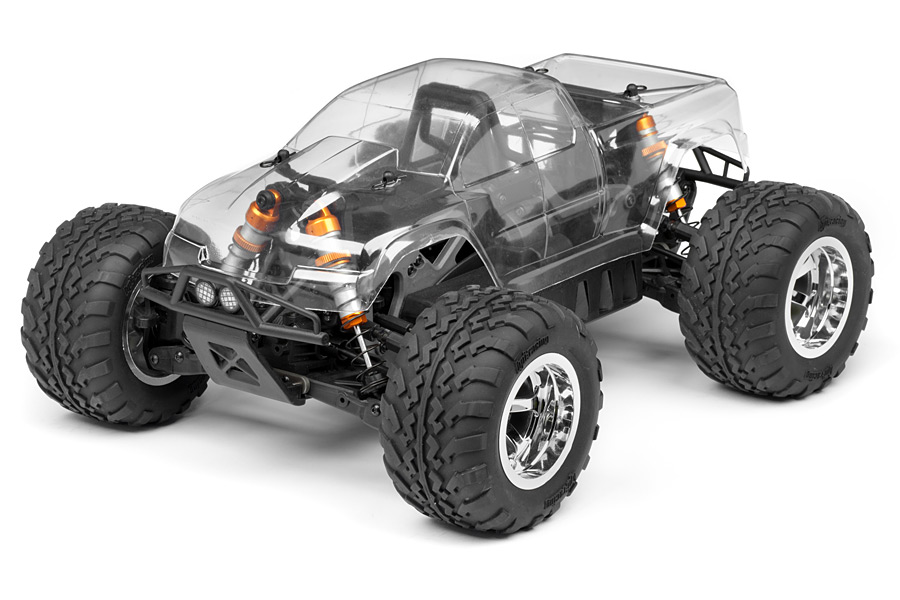

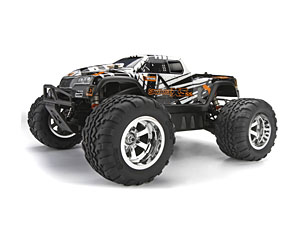

Customize your Savage XS SS with your own
unique paint scheme using the crystal-clear GT-2XS truck body!
Moulded from crystal clear polycarbonate plastic for high detail,
extreme durability and low weight, this is a great way to instantly
customize your Savage XS SS! Wrap up the custom look of your truck
with the Scorch chrome 6-spoke wheels - an awesome custom look with
maximum performance!
STANDARD SAVAGE XS FEATURES

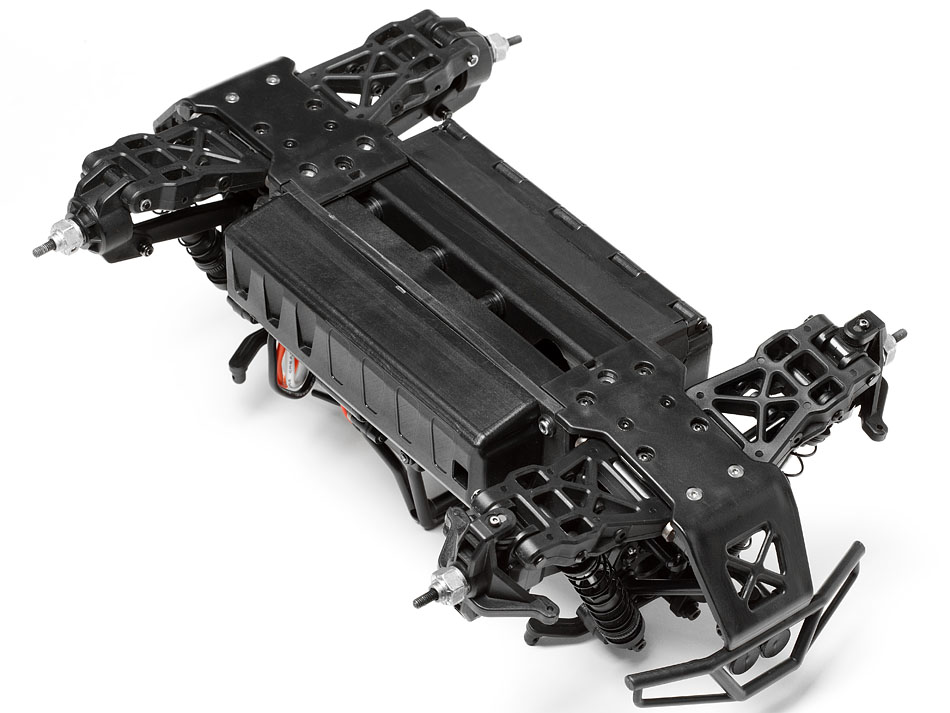

The chassis for the Savage XS SS is very
similar to the nitro-powered Savage that we all know and love - the
backbone consists of the TVP (Twin Vertical Plate) design, formed
from two 5mm chassis plates, with the diff cases at either end
providing significant stiffness and the transmission casing and
motor plate forming load-bearing members of the structure.

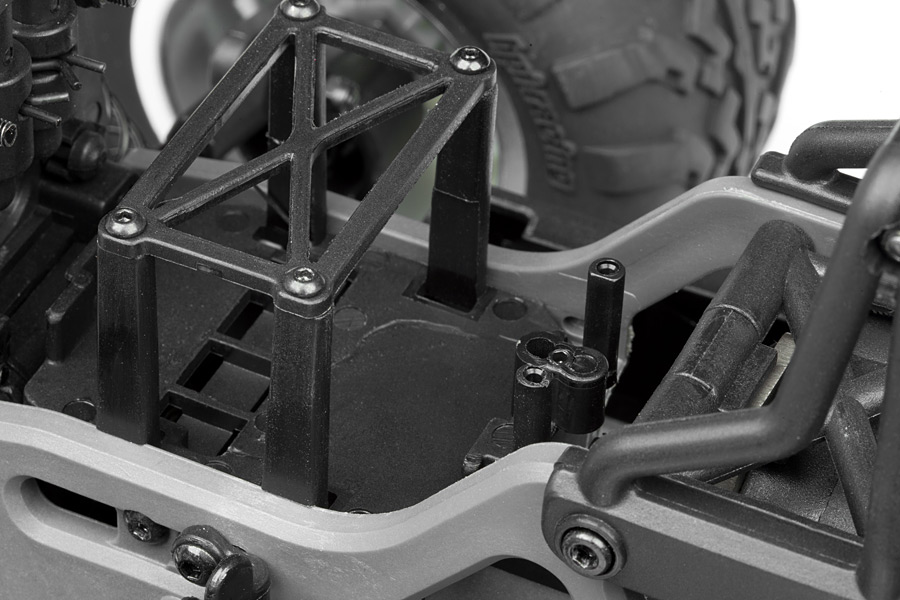

The Savage XS SS has a waterproof receiver
box to keep your receiver protected from the elements for
glitch-free operation. Add a waterproof steering servo and
electronic speed control so your Savage XS SS won't be stopped by
wet conditions!

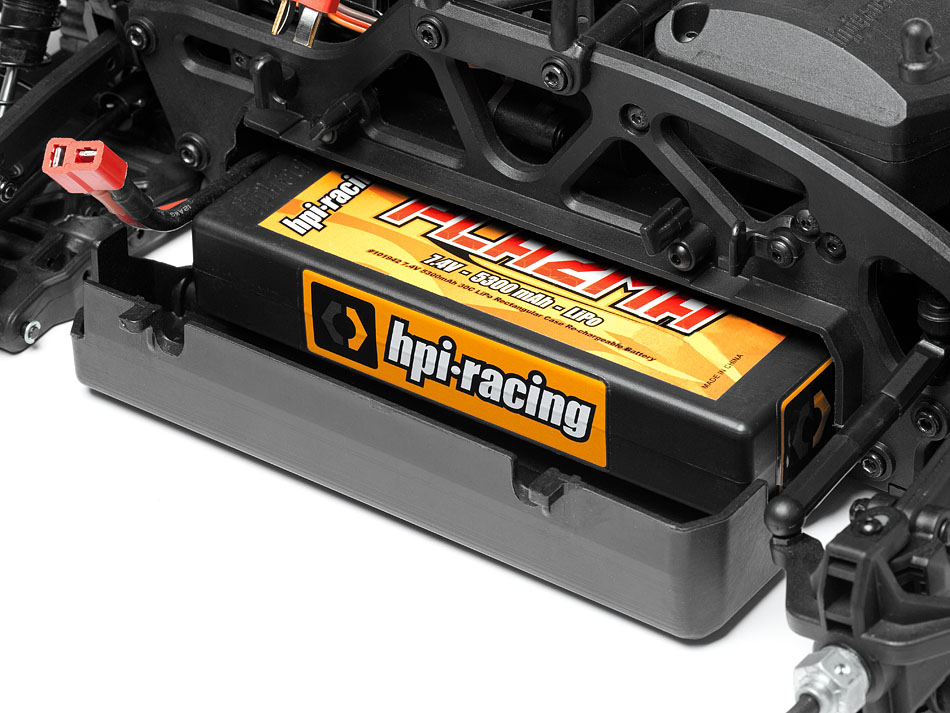

The Savage XS SS is designed to use
2S or 3S LiPo packs. The battery box features
vents to keep the battery pack cool, and we suggest using an
official Deans® zero-loss battery plug to match the plug on the
ESC. Out of the box, the Savage XS Flux is optimized for 2S
Lipo Power. 2S gives the best balance of handling and
performance. Standing backflips? No problem! But if you want to go
for crazy top speed or simply brutal power upgrade to 3S
LiPo batteries like the #101943 Plazma 11.1V 3800mAh! However, be
aware with that much power you've got to know what you are doing!
Depending on what you want to do and where you want to run the car
you will have to adjust the gear ratio. Option
parts #105809 & #6924are required
for 3S running in most situations like going off-road or doing
stunt driving.
Check out our 'Flux like a Pro – Savage
XS on 3S' video below!

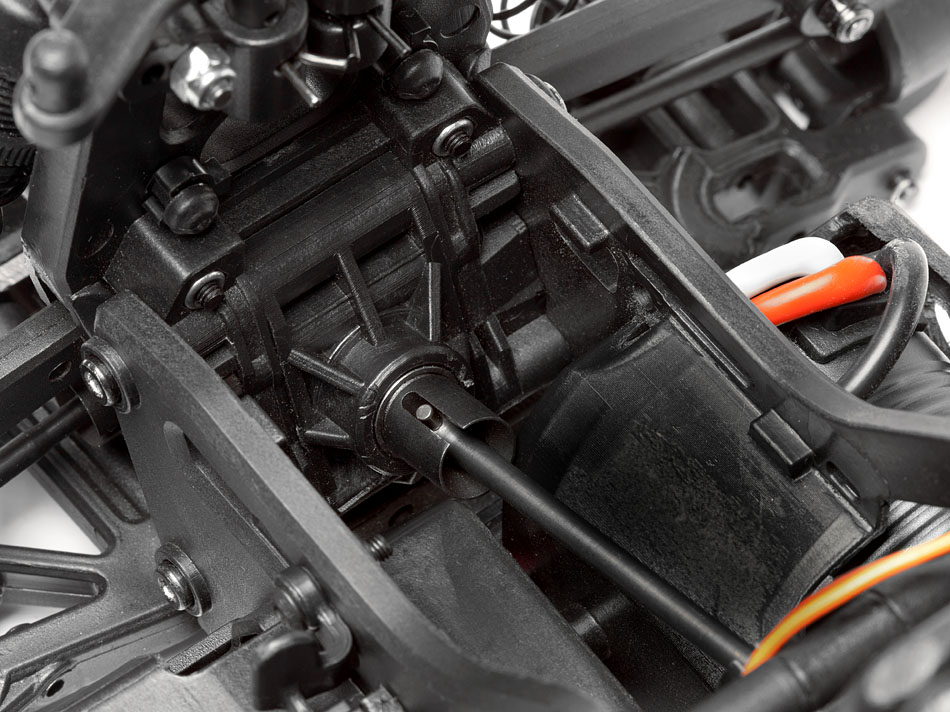

The Savage XS SS features all-metal
transmission gears to make sure that power delivery is
uninterrupted and every jolt of power gets from the motor to the
tires efficiently and with no worry of damage to the gears. The
whole drivetrain runs on ball bearings for optimal efficiency,
extra-long runtimes and mega-fast top speeds!
The over-sized suspension design makes the
Savage XS SS extremely tough and capable of handling even the
wildest bashing action. Aluminium 12mm hex hubs allow the mounting
of almost all standard 1/10th scale wheels.

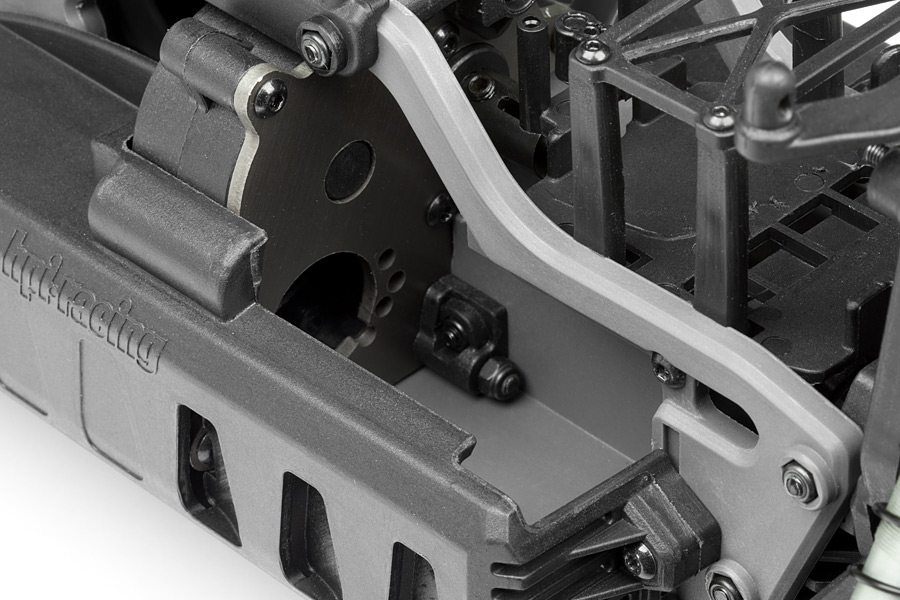

The enclosed Savage XS SS chassis design
protects all components from impact damage. All components like
battery, Motor, and servo sit inside the protective chassis.
With the aggressive tread of the 2.2" GT2
tires, you can go off-road to on-road with predictable handling.
The center tread lines give you stability on paved surfaces while
the blocky tread pattern and heavy-duty sidewall teeth provide grip
for off-road terrain like dirt, mud, muck, leaves. They're mounted
on chrome 6-spoke 2.2" wheels for tough monster truck styling. For
maximum hop-up potential, the Savage XS SS accepts a wide variety
of 1/10th scale 2.2" wheels and tires, making customizing your
truck easy!

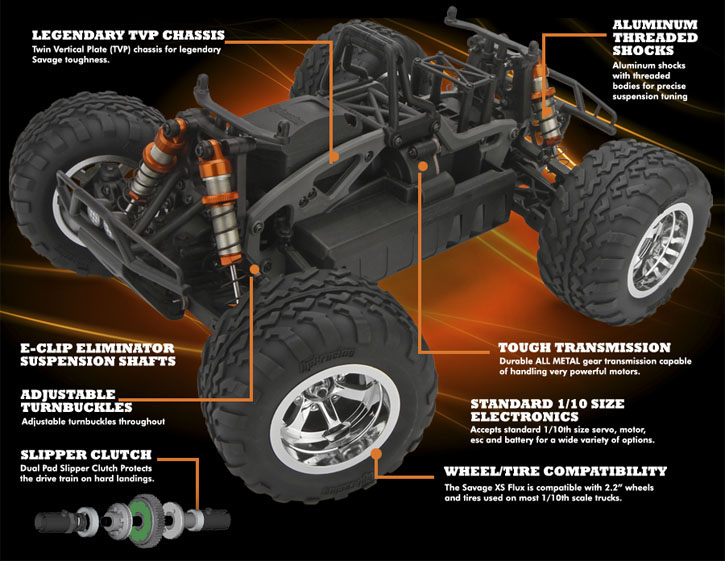

Savage XS SS Features Summary
- Self-build SS kit
- Fits standard size 1/10th scale electronics of your choice
- Waterproof receiver box
- Aluminum shocks with threaded bodies
- Orange-anodized shock hardware
- All-metal bulletproof drivetrain
- Front and rear universal driveshafts
- E-Clip Eliminator suspension shafts
- Tough steel adjustable turnbuckles
- 2.2" Savage XS tires
- New design 6-spoke chrome-plated wheels
- Shock towers have multiple shock mounting positions
- Quick access to the front or rear differential by removing just 4 screws
- Cam type servo saver
- Spacious battery box w/locking battery box door
- All socket head hardware
- Dual pad slipper clutch
- Full set of ball bearings
- Aluminum motor plate with 4 motor mounting positions
- Aluminum hex hubs
- TVP (Twin Vertical Plate) chassis
- Integrated chassis carry handle
- Tough 4-gear differentials
- Aluminum front and rear suspension braces
- Stainless steel bulkhead lower plates
- Front and rear skid plate bumpers
|
#107821 Savage XS SS Kit
4WD electric
powered mini monster truck
|
 |
| SPECIFICATIONS: Length: 360mm Width: 280mm Wheelbase: 225mm Drivetrain: Full-Time Shaft 4WD | WHAT YOU NEED: 2-channel radio system with batteries 540-size motor Electronic speed controller Steering servo Standard size 7.2 NiMH or 2S-3S battery Battery charger |
| Also check out the RTR Savage XS Flux! #106572 RTR SAVAGE XS FLUX |
 |
Specification may be subject to change
