High
Performance, Aggressive Desert Truck!
Updated
for 2013, with a new look and a new engine!
The Baja 5T was inspired by the latest
generation of desert trucks that compete in the world famous Baja
1000 race in Mexico. The body was built for a perfect fit on the
Baja 5T chassis, with sculpted fenders, scoops, louvers, and an
integrated roll cage for authentic desert-tough looks. In true HPI
RTR form, the body is completely ready to go right out the
box.... Factor in the front skid plate bumper, Desert
Buster tyres mounted on Outlaw truck wheels with real bead locks,
and you've got a truck that looks like it just rolled off the
starting line in Ensenada.
But the Baja 5T goes way beyond looks,
under the skin is a tough truck with the power to mow down
anything in its path. Power comes from a massive 26cc
gasoline engine, delivering rock solid performance, easy
tuning and run times of more than 30 minutes on a single
tank. The high performance 8,000 RPM clutch and new high
flow muffler give the Baja 5T the power to launch with a
roost of desert dirt on the way to a screaming top speed of
more than 40 MPH.
Revised 26cc
Engine for 2013
26cc engine for more power, more torque, and more speed than 23cc
engines. Equipped with a convenient pullstarter for quick and easy
starting. A high capacity dual-element air filter keeps the engine
running clean even in grueling off-road conditions, with a
quick-change design for easy maintenance. Air cooled with built-in
fan for consistent running temperatures. Fully adjustable
carburetor with primer and kill switch. Now constructed using Torx
screws for extra durability and easier maintenance, Torx T-27
wrench included. Gasoline powered for low-cost operation compared
to nitro fuel, easier to tune and more consistent than nitro
engines. More than 30 minutes of run-time per tank.All Metal
Transmission Gears
With all that power on tap from the Fuelie 26 engine, you need
incredible drivetrain durability for all those difficult off-road
conditions that you'll be tackling with your Baja 5T - and that's
exactly what you get with these all metal transmission gears!Dirt Guards
The sides of the truck are protected by new guards that
deflect dirt and debris away from the chassis which will
not only help keep cleaning and maintenance down but will also help
to lower wear and tear on the components. The engine also receives
dirt guards on both sides for extra
protection.Super-Tough Body
Mounting System
Keeping the body securely attached is a completely new body
mounting system with tough nylon construction, 8 mounting
points to distribute the stress on the body, and fully adjustable
for compatibility. A adjustable front skid plate
bumper protects the truck on big jumps, now with 4
headlights for realistic desert truck looks. A moulded nylon rear
spoiler is included for off-road stability, with an
integrated rear body brace for extra
strength.2.4GHz Radio
System with Failsafe
The electronics now included in every Baja RTR buggy and truck have
to be suitable to the task of handling a car nearly a meter long
that can go over 35 MPH - that includes a handy built-in electronic
failsafe to prevent a runaway Baja! To control the Baja 5B 2.0,
we've gone with the brand new HPI radio system, which uses a
2-channel 2.4GHz DSSS (Direct-Sequence Spread Spectrum) technology
instead of the more common and cheaper AM radio system. Tough
water-resistant servos control both the steering and throttle, and
a special large-scale SFL-11MG servo is used for the steering. A
powerful sub-C type 6-volt receiver pack powers the servos for
confidence and longevity. You'll find that many Baja bashers don't
find a need to upgrade the radio system, as it's already perfect
for the task! Electronic Failsafe Nitro racers
have known for a long time that having a working failsafe system is
important for those 'just in case' moments - some unforeseen event
that could make their car go out of control. With a truck as big as
the Baja 5T (900mm long and 12.6kg in weight!), this is even more
important! The failsafe ensures that should your Baja 5T ever lose
radio signal, instead of flying out of control it will come to a
safe and controlled stop! There's nothing like peace of mind!
For improved handling, the Baja 5T
rear shock tower has been modified for increased rear suspension
travel. All four shock absorbers have thick diameter
shafts for extra durability. The VVC/HD shocks are
tuned for smooth suspension dampening to help soak up the desert
terrain. The innovative design of the Baja 5T includes a
rigid 4mm aluminium alloy chassis for extreme
durability.
So get ready to take on the desert with the
giant new 1/5th scale Baja 5T truck. It's got the look, it's got
the power, and it's built tough to take the punishment of off-road
action.
|
Baja 5T-1 Truck Body -
Tough 2mm polycarbonate Baja 5T-1 desert truck body. Pre-painted,
pre-trimmed with body post holes, pre-applied racing decals and
clear tinted windows.
|
Truck Body Mounts -
Tough nylon construction and 8 mounting points keep the truck body
securely mounted, fully adjustable design for compatibility.
|
Moulded Rear Spoiler -
moulded nylon rear spoiler for stable handling. moulded nylon rear
body brace for body protection, includes provisions for optional
rear LED tail lights.
|
Aluminium Alloy Diff
Case - For increased drivetrain durability and extended
time between maintenance.
|
|
VVC/HD Shock Set -
Oil-filled coilover shock set with large diameter shock shafts for
increased durability, 16 hole rear piston with sealing ring for
consistent damping, fully adjustable design for tuning
options.
|
Front Skid Plate
Bumper - Adjustable skid plate front bumper protects the
truck on big jumps, now with 4 headlights for realistic Trophy
Truck looks.
|
Dirt Guards - New side
guards deflect dirt and debris away from the chassis. The engine
also receives dirt guards on both sides for extra protection.
|
Extended Roll Cage -
Extra bracing for durability, extended upper roll cage for spark
plug protection.
|
|
Outlaw Truck Wheels -
8-hole design, tough nylon construction, authentic bead-locks for
durability and tuning options.
|
Desert Buster tyres -
Large diameter truck tyres for realistic looks. Heavy duty rubber
compound and thicker carcass for extra durability.
|
Heavy Duty Inner Foam
- Special heavy duty rear inner foam inserts for extra durability
and extended tyre life.
|
Revised Gearing - New
19T transmission top gear adapts the drive ratio for quick
acceleration and high top speed when using truck tyres.
|
|

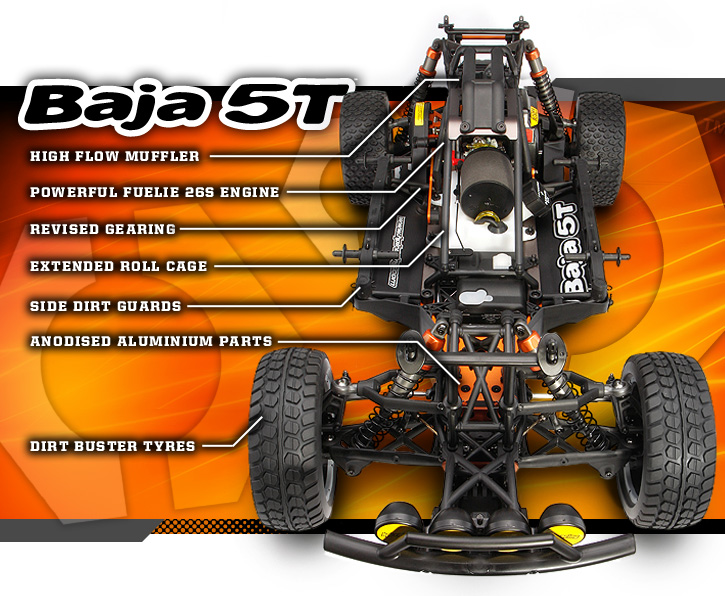

High Flow Muffler -
New large capacity design, tuned for increased horsepower.
|
SFL-11MG Metal Gear Steering
Servo - Tough metal final gears for extra durability and
reliable steering. Ball bearing equipped and water resistant. This
oversized steering servo has high torque specs, making it a perfect
match for the Baja 5T.
|
Heavy Duty Beadlocks -
Reinforced design increases durability of the wheels and tyres.
Beadlocks allow the removal and replacement of individual parts of
the wheels and tyres for maintenance.
|
8000 RPM Clutch -
Lightweight clutch and heavy duty spring launches the Baja 5T at
higher RPM for more punch off the line.
|
|
Anodized Aluminium
Parts - Black anodized 4mm 6061-T6 aircraft grade extruded
and CNC milled chassis, orange and gunmetal anodized alloy parts
give the Baja 5T an aggressive look.
|
Double Wishbone
Suspension - Full double wishbone front and rear
suspension to soak up off-road bumps and jumps. Consistent geometry
throughout the full stroke of the suspension movement for precise
handling.
|
Adjustable Suspension
- Turnbuckles for quick and easy adjustment of toe-in. Fully
adjustable camber and caster for tuning the handling to a wide
variety of conditions. High quality nylon is used throughout the
suspension for protection from crash damage.
|
Full Ball Bearings -
23 precision metal ball bearings for efficiency, durability, and
extended maintenance intervals.
|
|
Front & Rear Sway Bars
- Sway bars are used on the front and rear suspension for precise
handling and stable steering feel.
|
Modified Rear Shock Tower
Brace - Relocates shocks for increased rear suspension
travel for stable performance on rough surfaces and soft landings
over jumps.
|
Heavy Duty Rear
Dogbones - Metal construction with rubber dirt boots for
extra durability with high horsepower engines like the Fuelie
26.
|
Disc Brake System -
Braking is controlled by a vented steel/aluminium hybrid brake
rotor and semi-metallic brake pads for smooth and consistent
stopping power.
|
RTR - PERFORMANCE
STRAIGHT FROM THE BOX
HPI makes it as easy as possible for
beginners to get into 1/5 scale trucks. The Baja 5T is completely
pre-built and ready to go right out of the box! Everything is
assembled and tuned for you by professionals - engine connections,
shocks and more are perfect before you even open the kit so you
don't have to do a thing to get going fast! HPI Ready-To-Run models
bring you the same high performance and quality that you'd expect
from a high end model car kit but with the added convenience of
being factory pre-assembled to the highest standards - giving you a
high performance RC car straight from the box! HPI RTR cars are 98%
factory assembled - they come Ready-To-Run and equipped with all
the radio gear required. Just a few steps are needed to get your
car up and running, such as adding the batteries to the transmitter
and receiver and if you have a nitro powered car, running in the
engine - which is now even easier with our comprehensive manual and
HPI RC cars DVD which are both included in every box.
Full Assembly
Instructions
As with all HPI cars and trucks, you get a full, in depth
instruction manual with step by step instructions that allow you to
easily disassemble and reassemble your truck for maintenance and
easy servicing. 110185 RTR Baja 5T with 2.4GHz radio (Black)Pre-Assembled 1/5th scale 2WD truck with Fuelie 26cc gasoline engine, 2.4GHz radio set and SFL-11MG servo.
WHAT YOU NEED Pump
Petrol, 2 Stroke Engine Oil, 5 Litre Fuel Can
INCLUDES: 4 AA Batteries for Transmitter, 6.0V 3000mAh Receiver Pack and multi region charger
INCLUDES: 4 AA Batteries for Transmitter, 6.0V 3000mAh Receiver Pack and multi region charger
Specification may be subject to change
