It has come to our attention that the recent batches of the above Baja kits from late 2017 to Feb 2018 have been subject to an assembly error.
Several important metal-to-metal screws may not have been threadlocked correctly during assembly.
During our own investigations, the threadlock amount varies inconsistently. Because of this, we are asking all Baja owners to do a 100% check on these important screws.

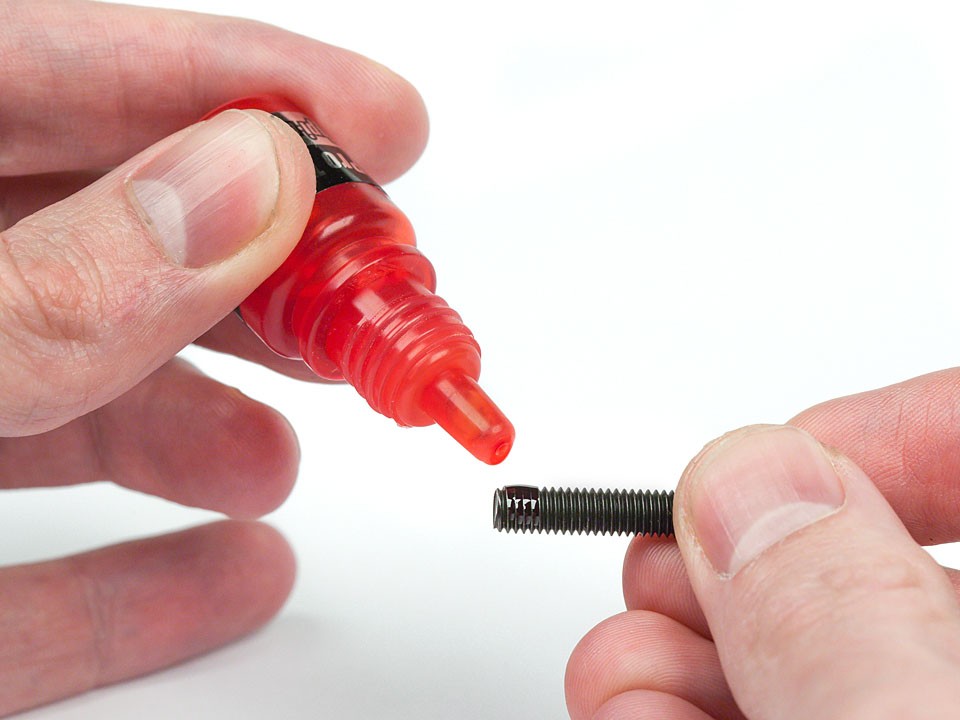

Only a small amount of Z186 PRO THREAD-LOCK is required on each screw. Apply a small amount as shown.

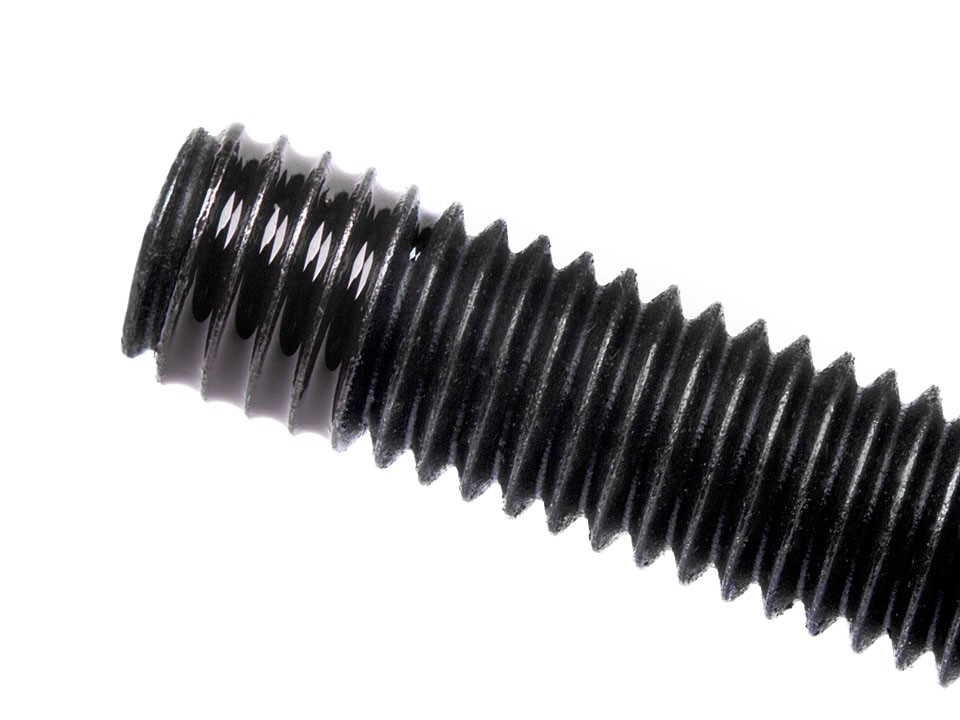

Thread-lock will run into the screw thread. Wipe off any excess. The screw is ready to put back.
Please check the following screws for existing thread-lock and where needed apply small amount the included Z186 PRO THREAD LOCK (RED/3cc) to thread-lock the following screws:
#94879 x 4 Rear Chassis - FLAT HEAD SCREW M6x14mm (4mm Hex Socket)

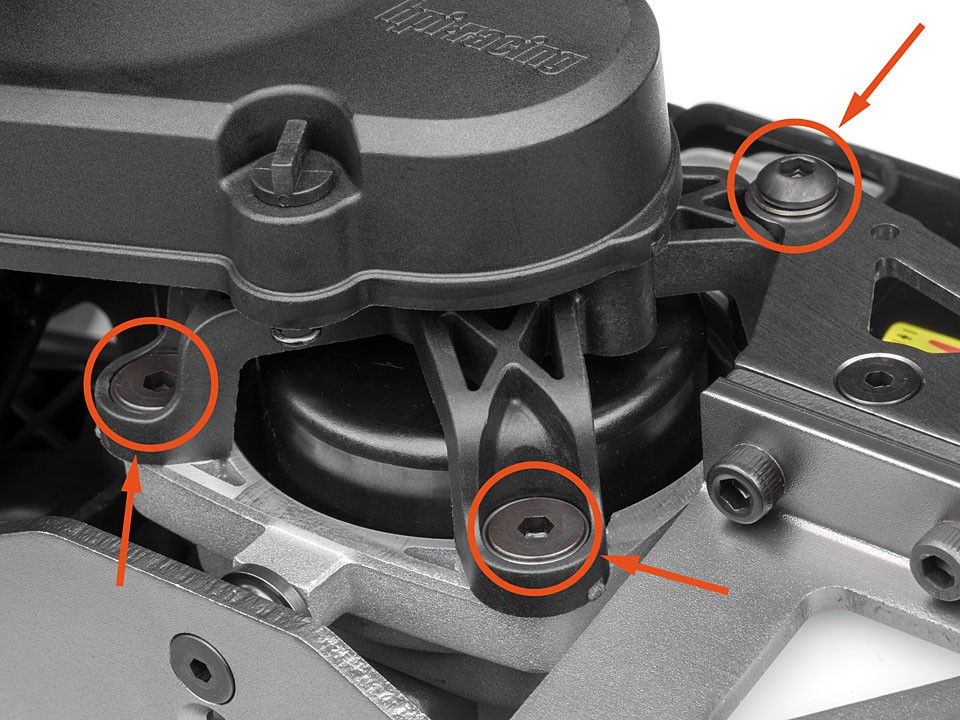

#94732 x 3 Engine Mount - FLAT HEAD SCREW M5x20mm (3mm Hex Socket)

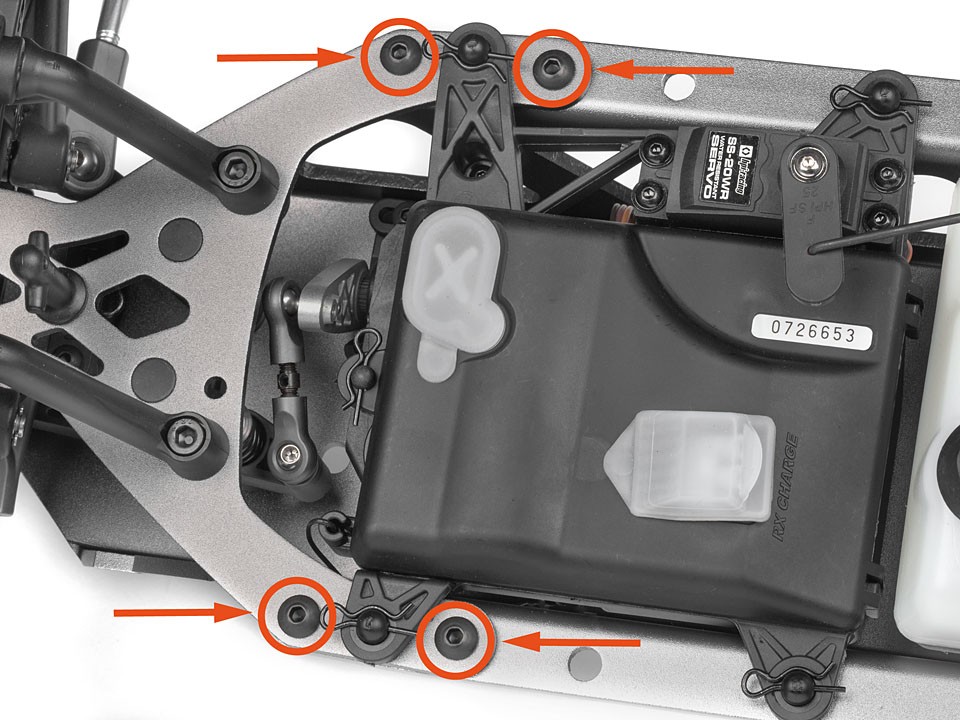

#94754 x 4 Front Chassis - BUTTON HEAD SCREW M5x12mm (3mm Hex Socket)
#94710 x 1 Side Engine Brace - CAP HEAD SCREW M5x30mm (4mm Hex Socket)

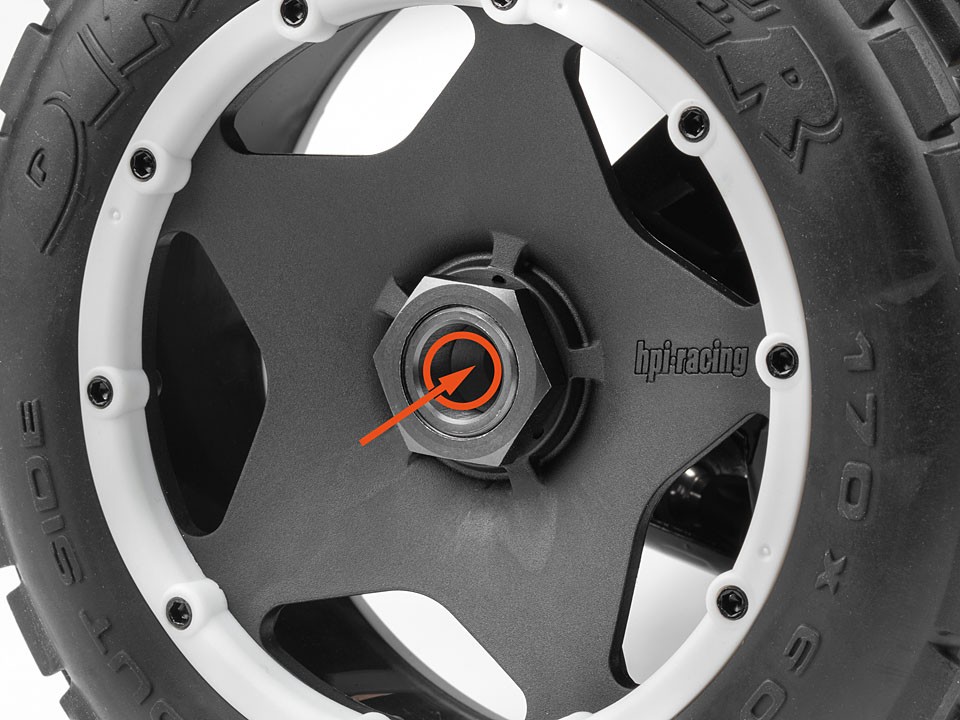

#94510 x 2 Front Hex Hub Retainer - CAP HEAD SCREW M4x25mm (3mm Hex Socket)
#94502 x 2 Rear Wheel Axle Pin Retainer - CAP HEAD SCREW M4x6mm (3mm Hex Socket)

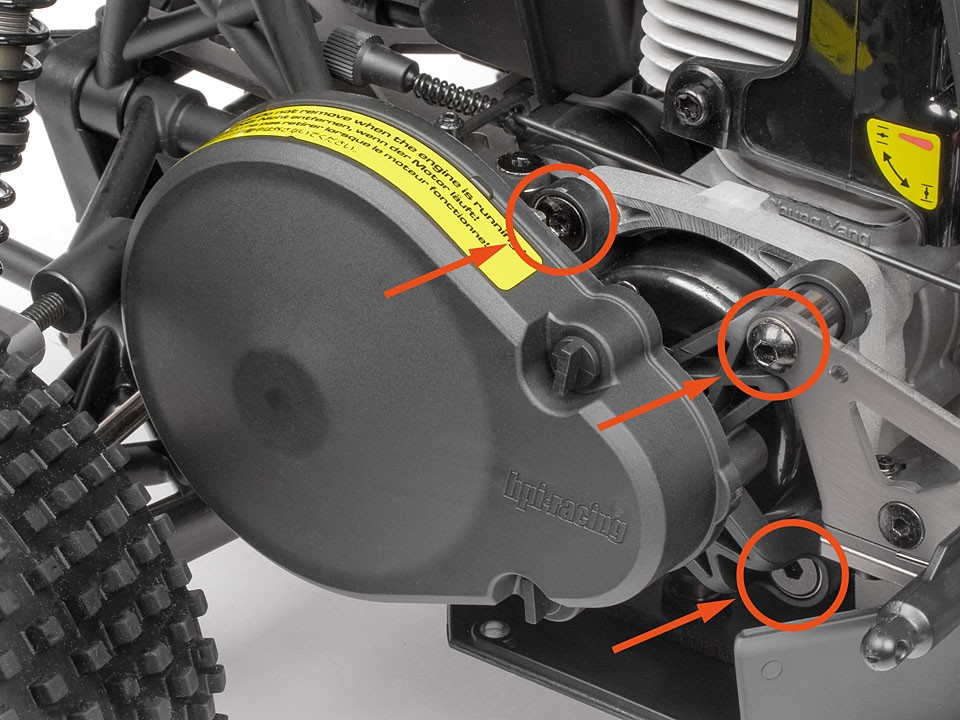

#94879 x 3 Clutch Cover and Pinion Mount - FLAT HEAD SCREW M6x14mm (4mm Hex Socket)

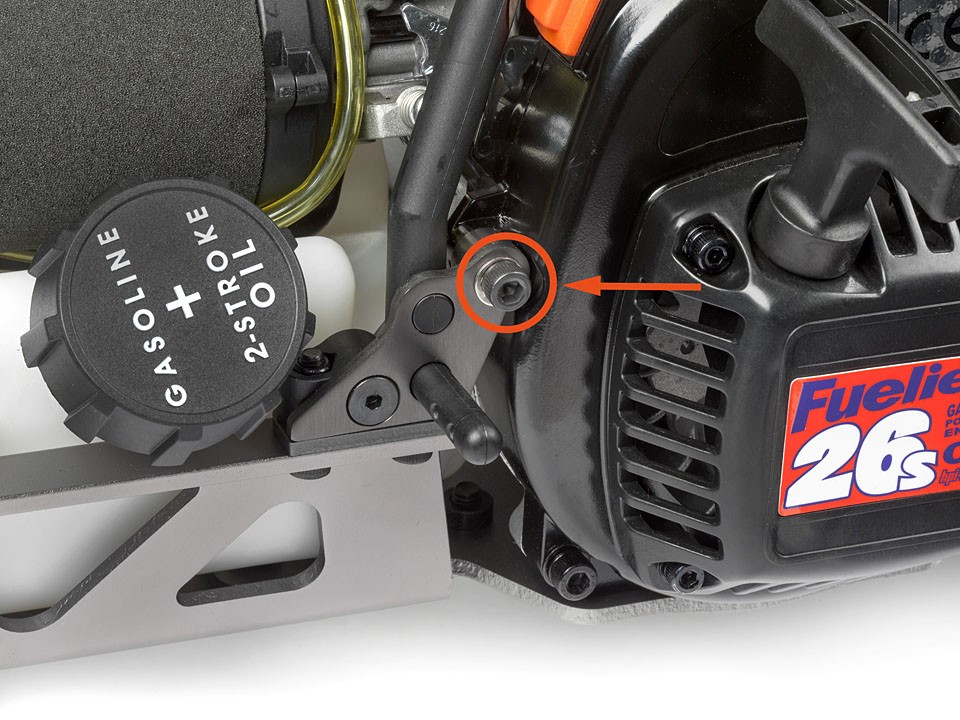

#94910 x 1 Side Engine Brace - BUTTON HEAD SCREW M6x30mm (4mm Hex Socket)
